Brake Pads - Vehicles With: 350 Mm Front Brake Discs (G2301123): Removal
CAUTION:
- If new brake pads are installed, the brake pad wear sensor must be replaced.
- If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
- The brake pads must be replaced in axle sets only.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Remove the front wheels and tires.
Refer to: WHEEL AND TIRE .
-

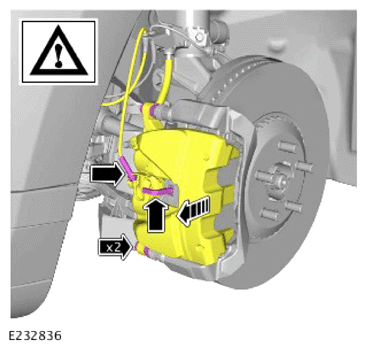

CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.
- Disconnect and release the brake pad wear sensor.
- Remove the 2 brake caliper slide pins.
- Using a suitable tie strap, secure the brake caliper to one side.
Release and remove the 2 brake pads.
- Repeat the procedure for the other side.
