Brake Disc (G2301114): Removal

WARNING:

If new brake discs are to be installed, make sure that new brake pads are installed.
Brake discs must be replaced in axle sets.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front wheels and tires.
Refer to: WHEEL AND TIRE .
CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

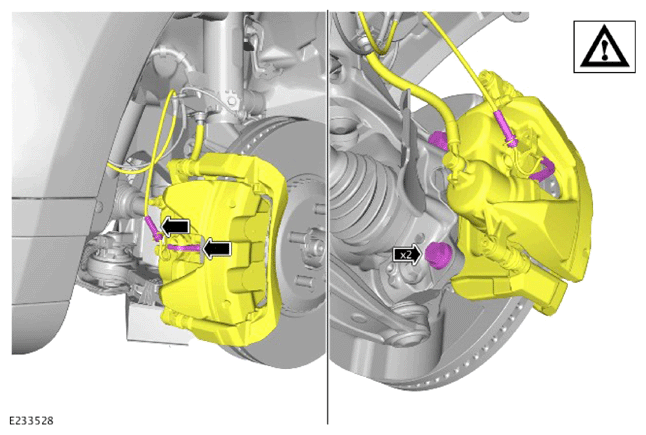

- Disconnect the brake pad wear sensor.
- Release the brake pad wear sensor grommet.
- Remove and discard the 2 brake caliper anchor plate bolts.
- Using a suitable tie strap, secure the caliper to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

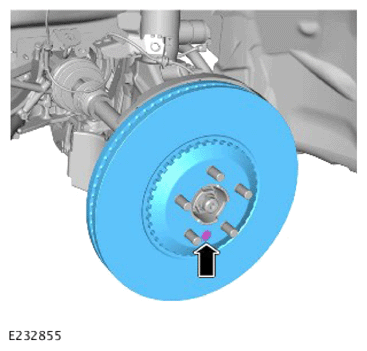

- Remove and discard the screw.
- Remove the brake disc.
