Brake Disc (G2301114): Installation

CAUTION: Damaged components must be replaced.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

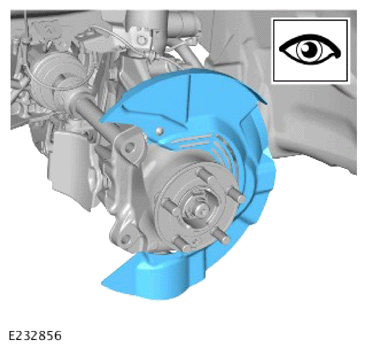

Clean and inspect the brake disc shield.

Material: Brake Cleaner (3U7J-2C410-AA)
- Install the brake disc.
- Install and tighten the new screw.
  Renew Part: Brake disc bolt Quantity: 1 .

  Torque : 10 Nm
- Install the brake caliper.
- Install and tighten the 2 new anchor plate bolts.
  Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

  Torque

  Stage 1: 110 Nm

  Stage 2: 120°
If a new brake disc is installed, make sure to install new brake pads.
Refer to: BRAKE PADS - VEHICLES WITH: 325 MM FRONT BRAKE DISCS .

Refer to: BRAKE PADS - VEHICLES WITH: 350 MM FRONT BRAKE DISCS .
- Connect the brake pad wear sensor to the brake pad.
- Secure the brake pad wear sensor grommet.
Install the wheel and tire.
Refer to: WHEEL AND TIRE .
