Brake Caliper Anchor Plate (G2319501): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

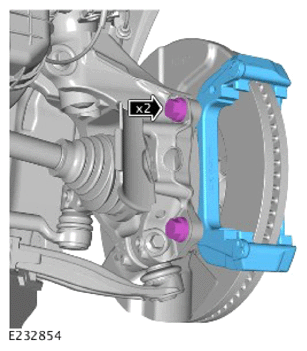

- Install the brake caliper anchor plate.
- Install and tighten 2 new bolts.
  Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

  Torque

  Stage 1: 110 Nm

  Stage 2: 120°
Install the front brake pads.
Refer to: BRAKE PADS - VEHICLES WITH: 325 MM FRONT BRAKE DISCS .

Refer to: BRAKE PADS - VEHICLES WITH: 350 MM FRONT BRAKE DISCS .
Install the wheel and tire.
Refer to: WHEEL AND TIRE .
