Brake Caliper - Vehicles With: 325 Mm Front Brake Discs (G2301112): Installation

CAUTION: Make sure that a new flexible brake hose assembly is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

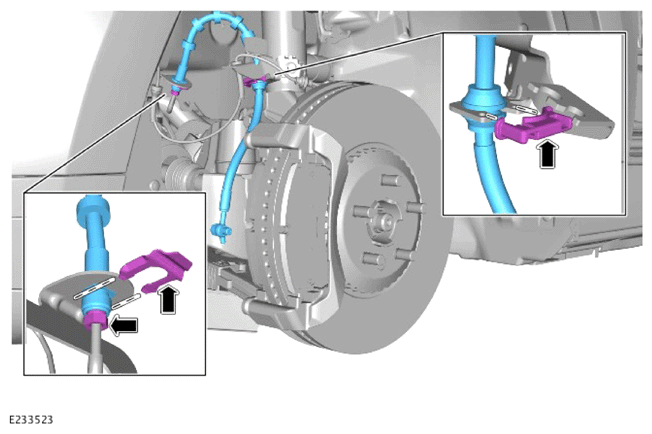

- Install the new brake hose.
  Renew Part: Brake hose Quantity: 1 .
- Secure the 2 clips.
- Connect the brake pipe union.
  Torque : 15.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

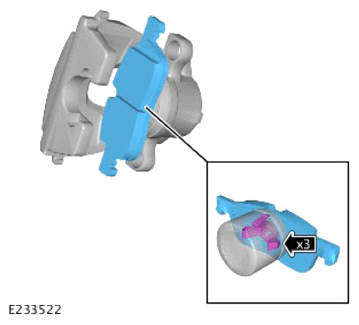

- Install and secure the inboard brake pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

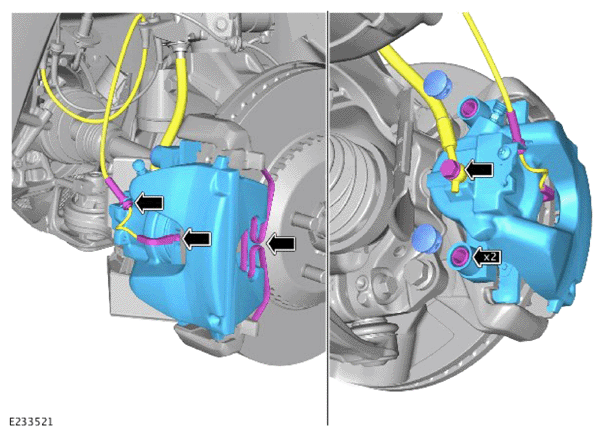

- Install the brake caliper.
- Install and tighten the brake caliper guide pins.
  Torque : 58 Nm
- Connect the brake hose to the brake caliper.
  Torque : 35 Nm
- Connect and secure the brake pad wear sensor.
- Install the anti-rattle spring and the 2 dust caps.
Install the front section of the front wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
Install the wheel and tire assembly.
Refer to: WHEEL AND TIRE .
Bleed the brake system.
Refer to: BRAKE SYSTEM PRESSURE BLEEDING - VEHICLES WITH: PHEV .

Refer to: BRAKE SYSTEM PRESSURE BLEEDING - VEHICLES WITH: MHEV/NON-ELECTRIC VEHICLES .
