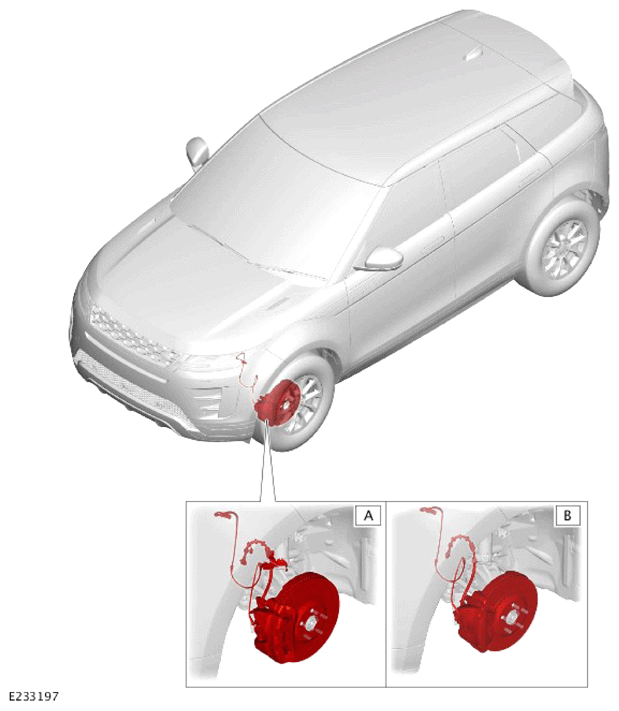

Component Location

NOTE: Only the front left brake system shown, the right side is similar.
G14428143Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
A High performance brake system
B Standard brake system
