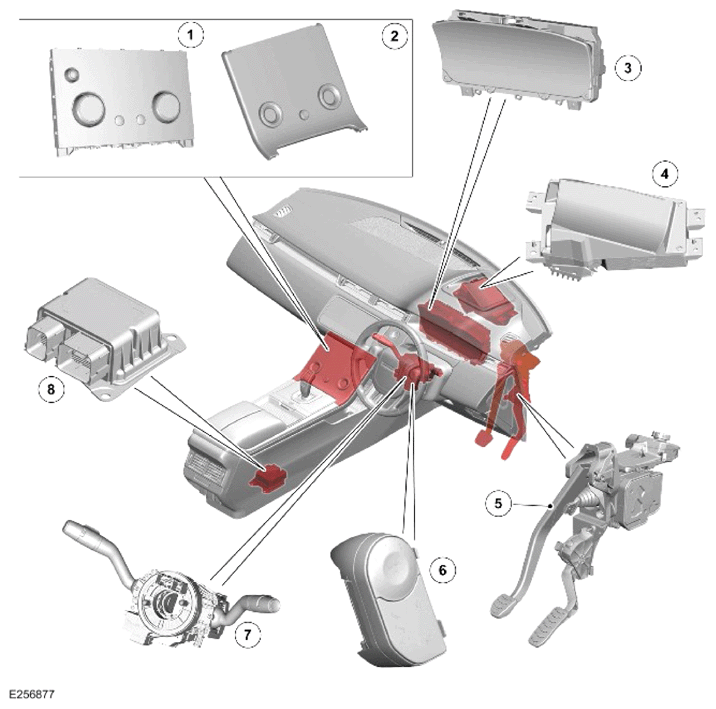

Component Location - 2 Of 2
NOTE:
RHD vehicle is shown. LHD vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Integrated Control Panel (FCIM) |
| 2 | Interactive Control Display Module (ICDM) |
| 3 | Instrument Panel Cluster (IPC) |
| 4 | Head Up Display (HUD) |
| 5 | Brake pedal |
| 6 | Steering wheel switch - Right |
| 7 | Steering Angle Sensor Module (SASM) |
| 8 | Restraints Control Module (RCM) |
