Component Location - 5 Of 5 - Window Control

NOTE: Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.

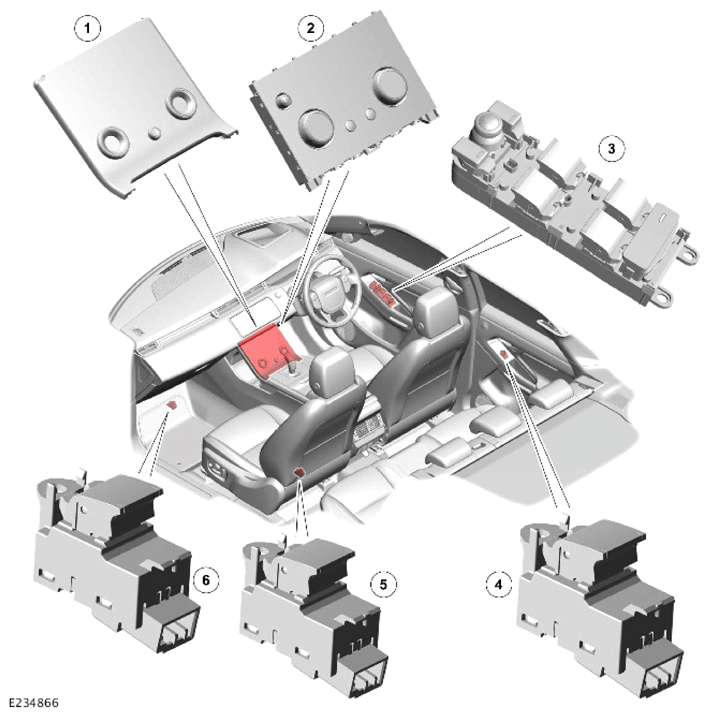

G14458424Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Interactive Control Display Module (ICDM) (if equipped)
2 Integrated Control Panel (ICP) (if equipped)
3 Driver door switchpack
4 Rear right passenger door switch
5 Rear left passenger door switch
6 Front left passenger door switch
