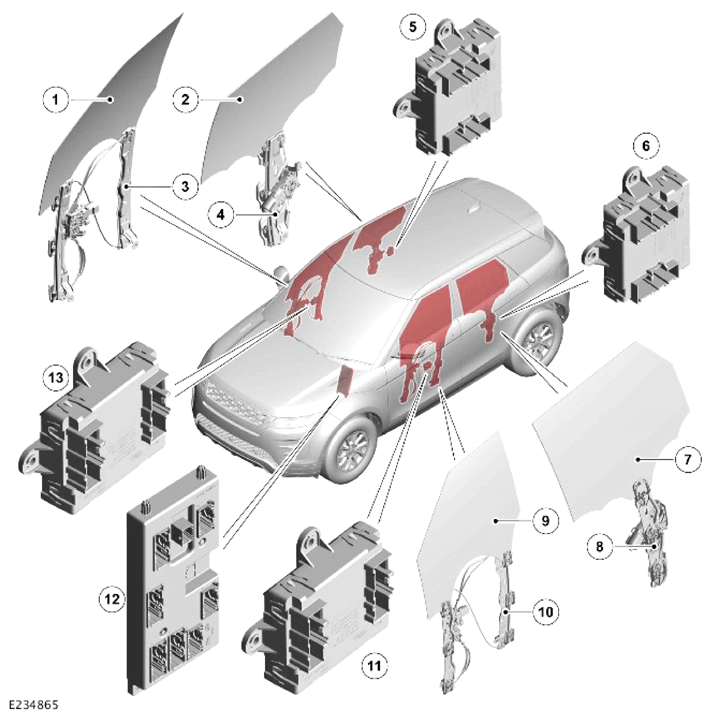

Component Location - 4 Of 5 - Door Window
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Front right door window |
| 2 | Rear right door window |
| 3 | Front right door window regulator |
| 4 | Rear right door window regulator |
| 5 | Driver Rear Door Module (DRDM) |
| 6 | Passenger Rear Door Module (PRDM) |
| 7 | Rear left door window |
| 8 | Rear left door window regulator |
| 9 | Front left door window |
| 10 | Front left door window regulator |
| 11 | Passenger Front Door Module (PDM) |
| 12 | Body Control Module (BCM)/Gateway Module A (GWM) |
| 13 | Driver Front Door Module (DDM) |
