Front End Body Panels (G2318700)

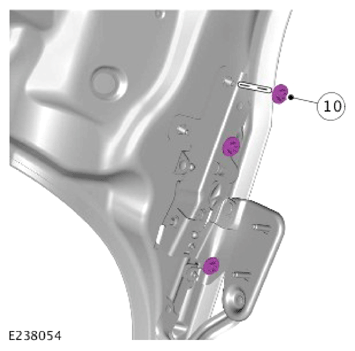

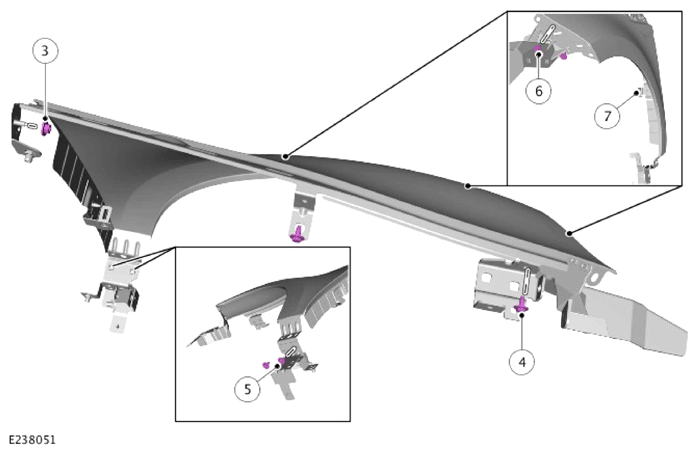

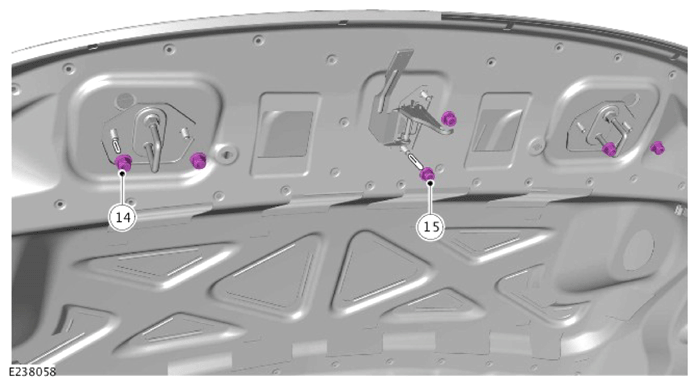

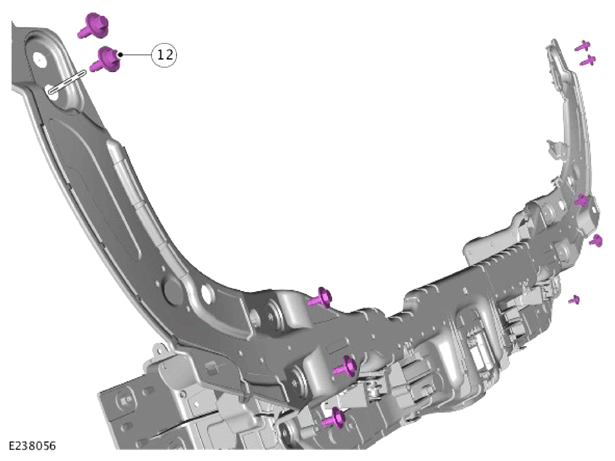

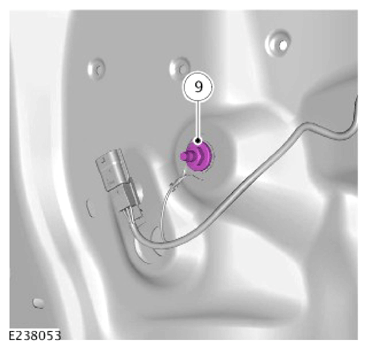

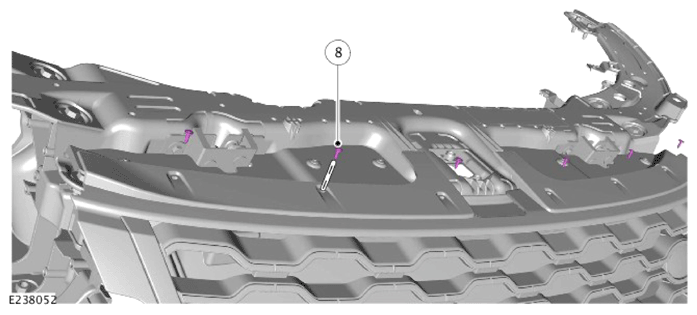

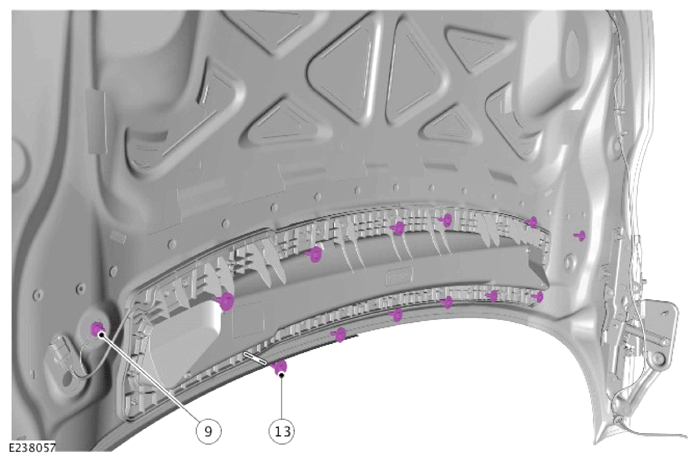

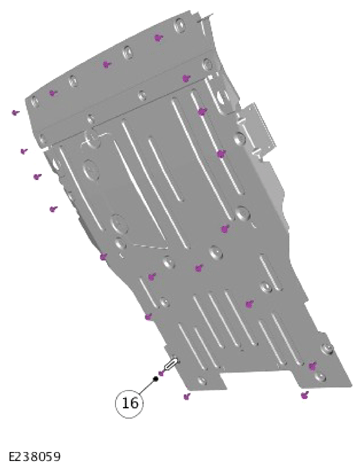

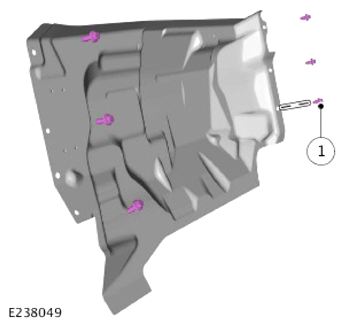

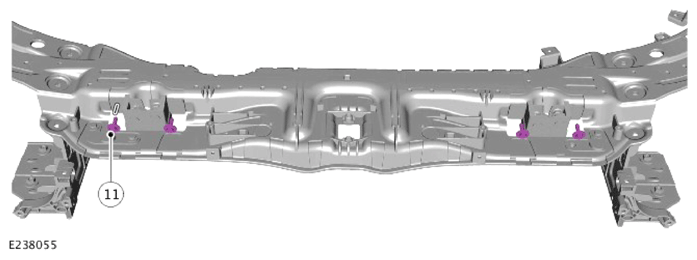

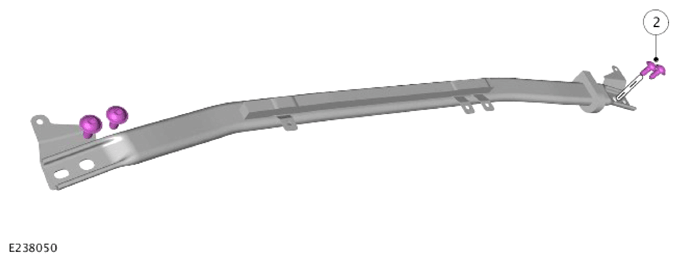

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN
1	Bulkhead panel bolts	7	-	61
2	Engine compartment cross brace bolts	110	81	-
3	Fender upper nut	10	7	-
4	Fender upper bolts	10	7	-
5	Fender lower bolts	10	7	-
6	Fender front bolts	10	7	-
7	Fender front nut	10	7	-
8	Front grille panel screw	2	-	17
9	Ground cable	10	7	-
10	Hood hinge nuts	10	7	-
11	Hood latch bolts	10	7	-
12	Hood latch panel bolts	24	17	-
13	Pedestrian protection system airbag bolts	10	7	-
14	Hood striker nuts	24	17	-
15	Hood safety latch nuts	24	17	-
16	Engine undershield bolts	10	7	-
