Secondary Bulkhead Center Panel (G2319908): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Diesel variant shown, petrol similar.

The following step(s) applies to:

All vehicles

Remove the air filter housing outlet pipe.
Refer to: AIR FILTER HOUSING OUTLET PIPE .

The following step(s) applies to:

Vehicles with petrol engine
Remove the engine compartment cross brace.
Refer to: ENGINE COMPARTMENT CROSS BRACE .

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

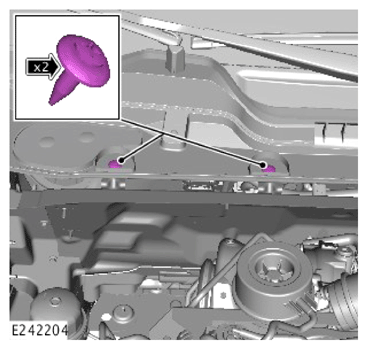

Remove the 2 clips from the cowl panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

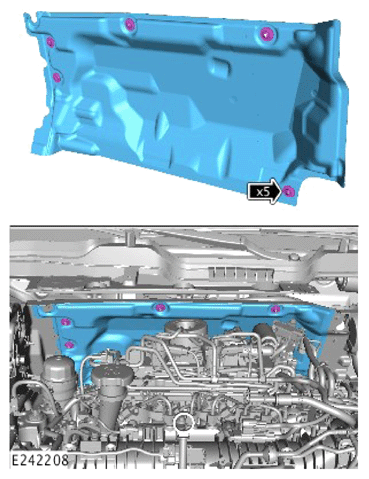

- Remove the 5 nuts.
- Remove the noise, vibration and harshness material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

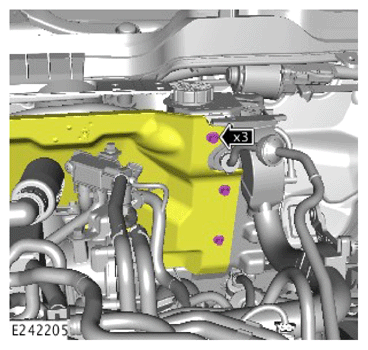

Remove the 3 bolts from the secondary bulkhead center panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

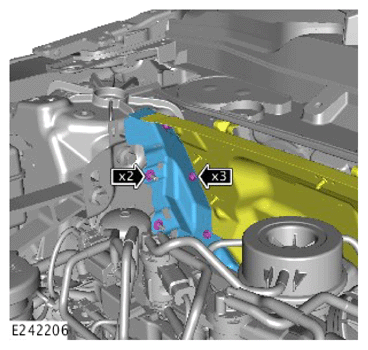

- Remove the 3 bolts.
- Remove the 2 nuts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

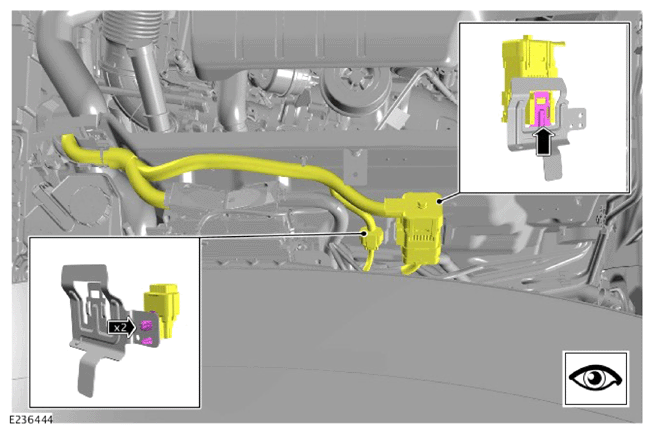

Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

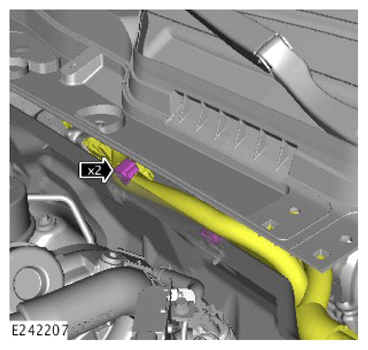

Release the 2 wiring harness connectors from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

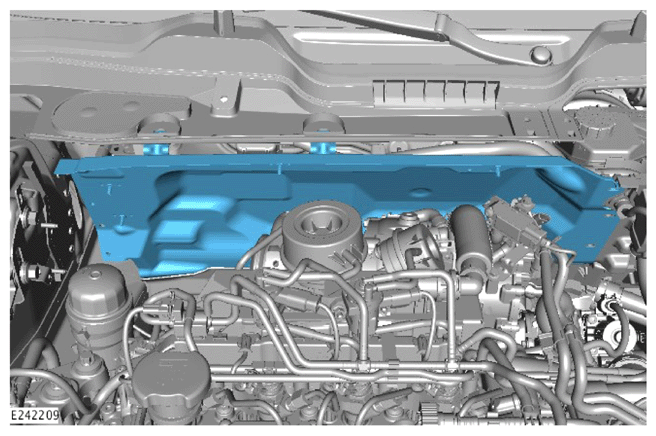

Remove the secondary bulkhead center panel.
