Right UNDERSHIELD - Vehicles With: PHEV (G2453200): Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .

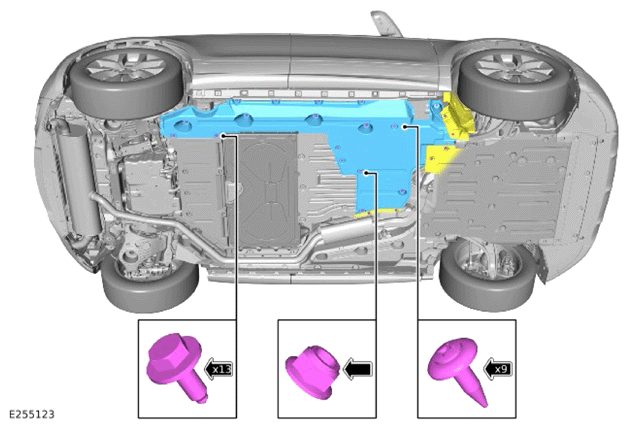

- Remove the 13 bolts.
- Remove the nut.
- Remove the 9 clips.
- Remove the right undershield.
