Hood Latch Panel (G2308355): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Remove the radiator grille.
Refer to: RADIATOR GRILLE .

The following step(s) applies to:

Plug in hybrid electric vehicles only
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

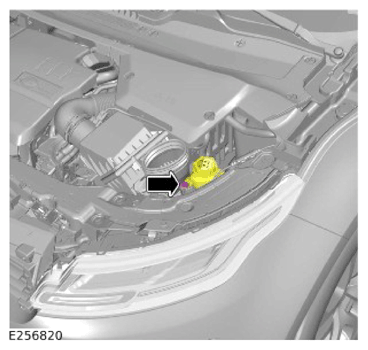

- Remove the bolt.
- Reposition the Plug-in Hybrid Electric Vehicle (PHEV) battery cooling system expansion tank.
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

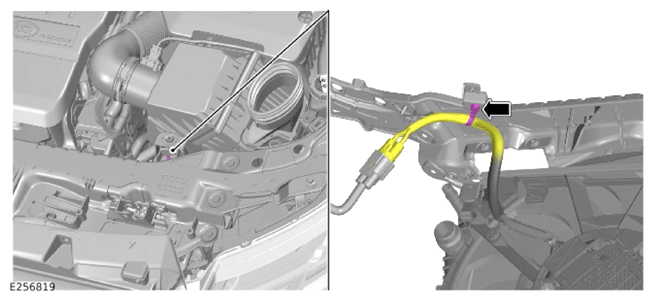

Release the cooling module wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

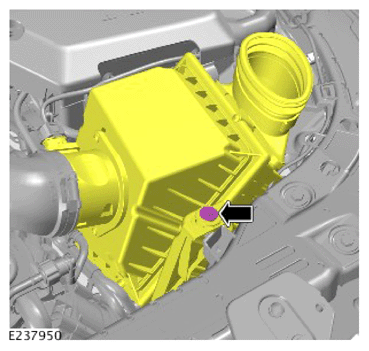

Remove the air filter housing bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

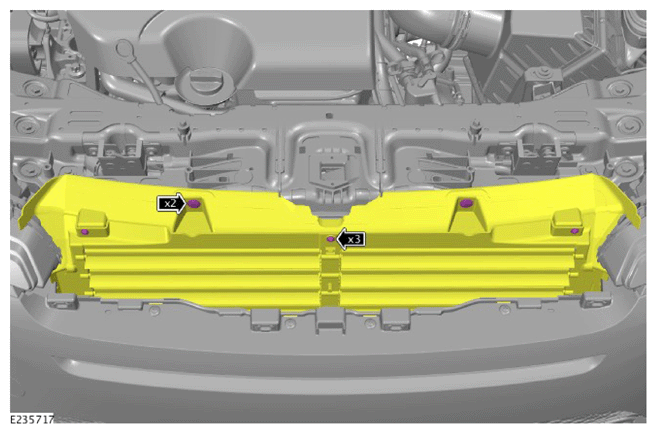

- Remove the 3 active grille air shutter screws.
- Remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

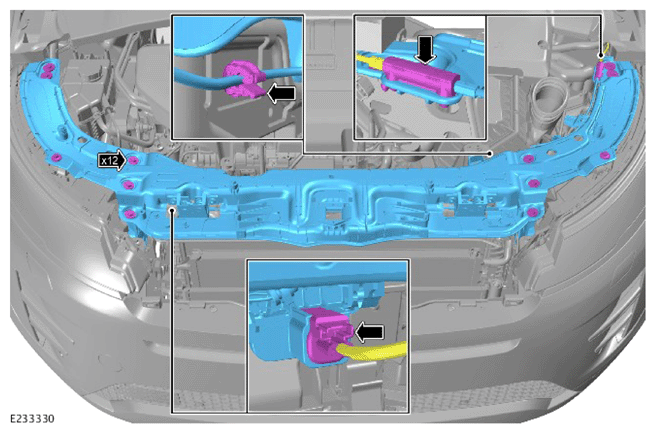

- Release the hood release cable from the connecting box.
- Remove the 12 bolts.
- Disconnect the electrical connector.
- Release the hood release cable from the clip.
- Remove the hood latch panel.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

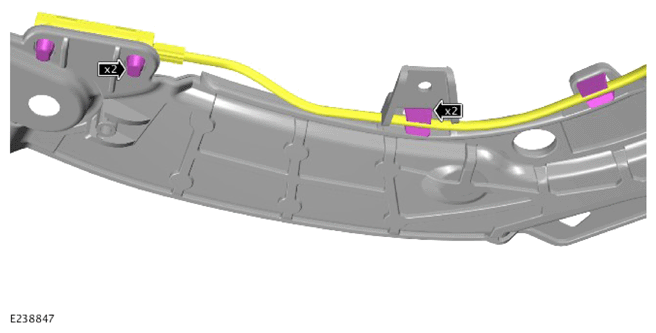

- Release the 2 clips.
- Release the hood release cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

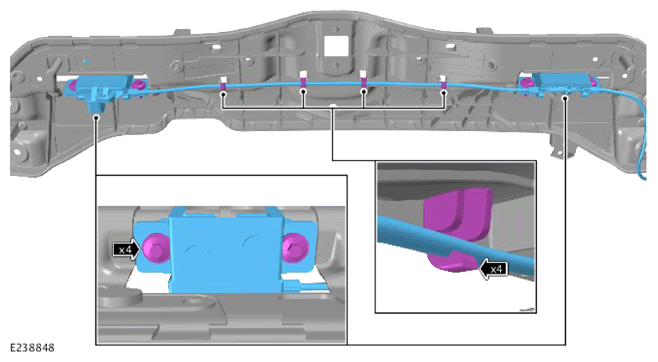

- Release the hood release cable.
- Release the 4 clips.
- Remove the hood latches.
