Hood (G2309378): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Open the hood.
Make the Supplementary Restraint System (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

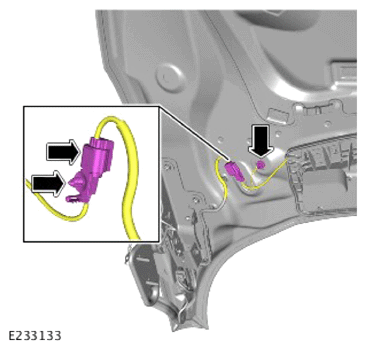

- Disconnect the electrical connector.
- Remove the ground nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

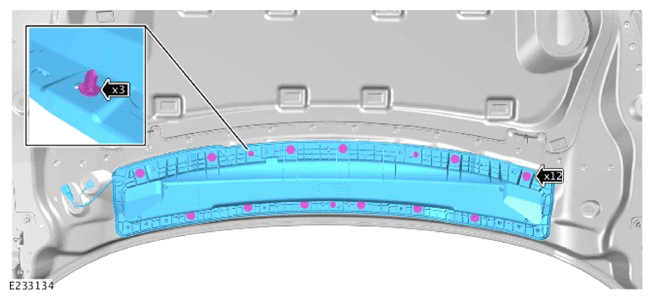

- Remove the 12 bolts.
- Remove the pedestrian protection system airbag.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

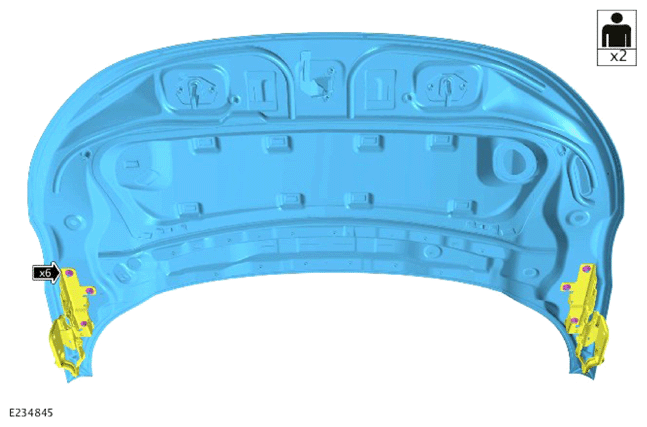

- Remove the 6 nuts.
- With assistance, remove the hood.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

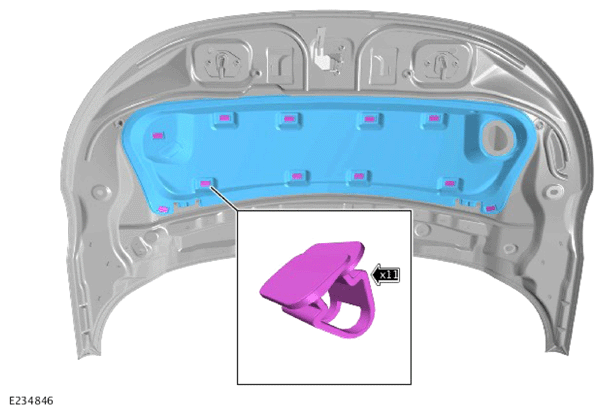

- Release the 11 clips.
- Remove the noise vibration and harshness (NVH) cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

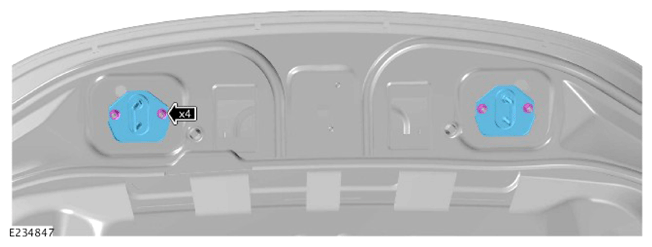

- Remove the 4 nuts.
- Remove the 2 strikers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

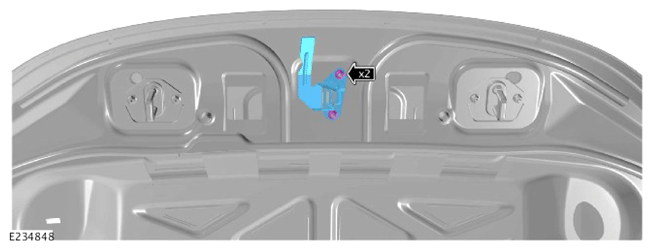

- Remove the 2 nuts.
- Remove the hood latch.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

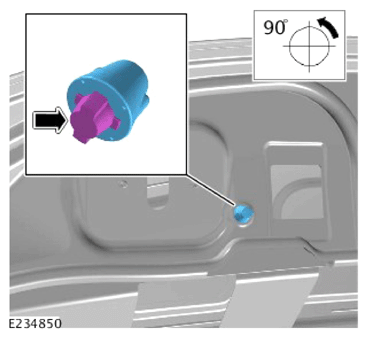

Remove the bump stop.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

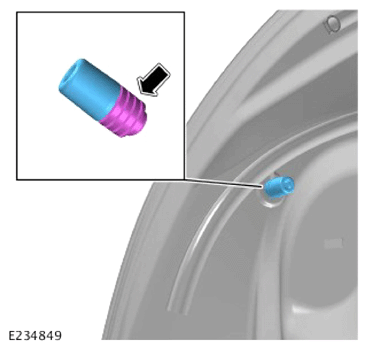

Remove the bump stop.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

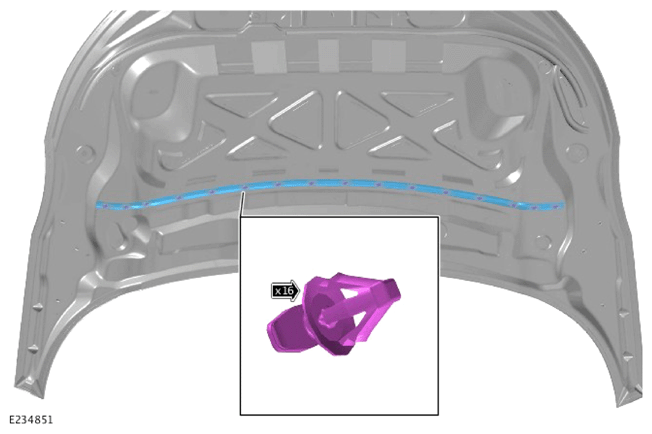

- Release the 16 clips.
- Remove the hood seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

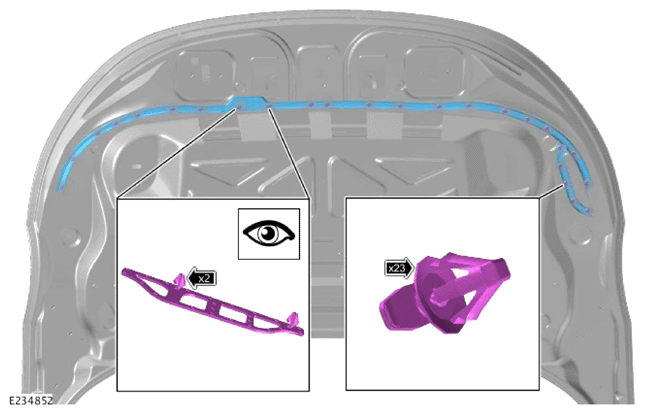

- Release the 23 clips.
- Release the 2 clips.
- Remove the hood seal.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

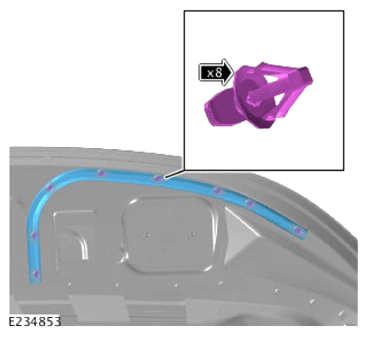

- Release the 8 clips.
- Remove the hood seal.
