Front Wheel Arch Liner (G2298868): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

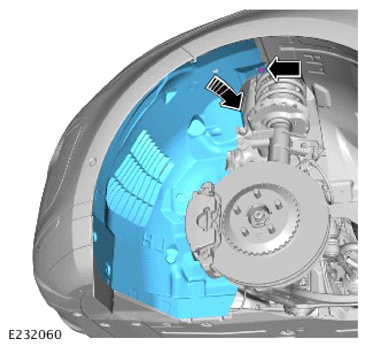

- Release the brake pad wear sensor wiring harness.
- Release the shock absorber wiring harness.
- Release the front wheel speed sensor wiring harness.
- Remove the 2 nuts.
- Remove the 2 fasteners.
- Remove the front wheel arch inner molding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

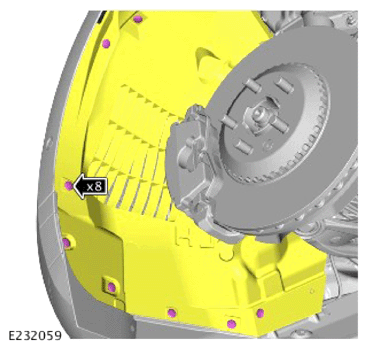

- Remove the 8 fasteners.
- Release the front section of the wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the screw.
- Remove the front section of the wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

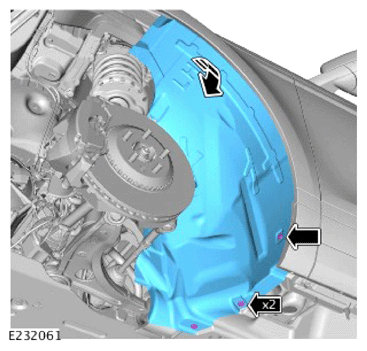

- Remove the 2 screws.
- Remove the fastener.
- Remove the rear section of the wheel arch liner.
