Fender (G2309377): Removal

CAUTION: Care must be taken to avoid damaging the surrounding paintwork.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front bumper.
Refer to: FRONT BUMPER .
Remove the fender molding.
Refer to: FENDER MOLDING .
Remove the windshield washer reservoir.
Refer to: WINDSHIELD WASHER RESERVOIR .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the clip.
- Remove the baffle plate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Remove the fender.
CAUTION: Care must be taken not to damage the component.
NOTE:
- Only do the following step(s) if a new component is to be installed.
- Do not remove the component at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

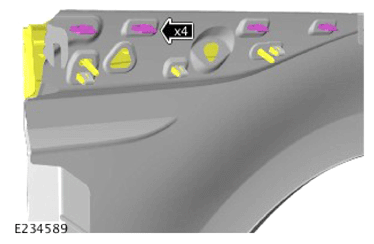

Release the 4 clips.
CAUTION: Care must be taken not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

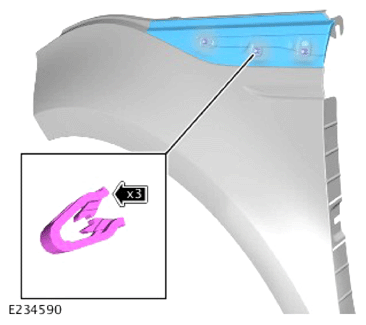

Remove the fender upper molding.
