Engine UNDERSHIELD (G2298195): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

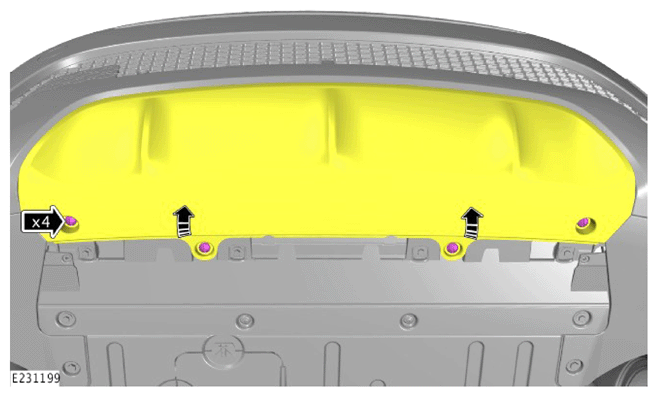

- Remove the 4 fasteners.
- Reposition the front valance.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

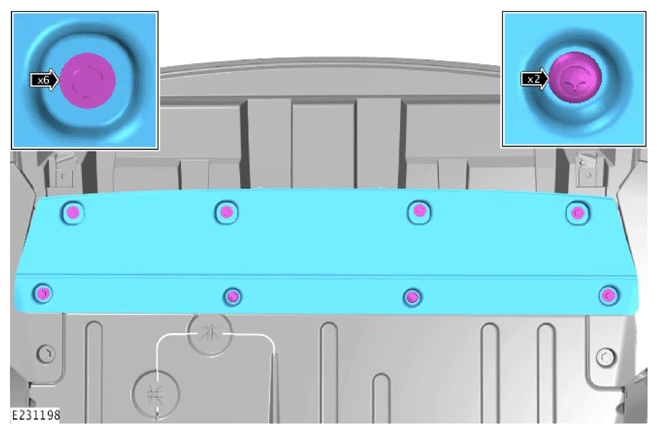

- Remove the 6 bolts.
- Remove the 2 fasteners.
- Remove the front undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

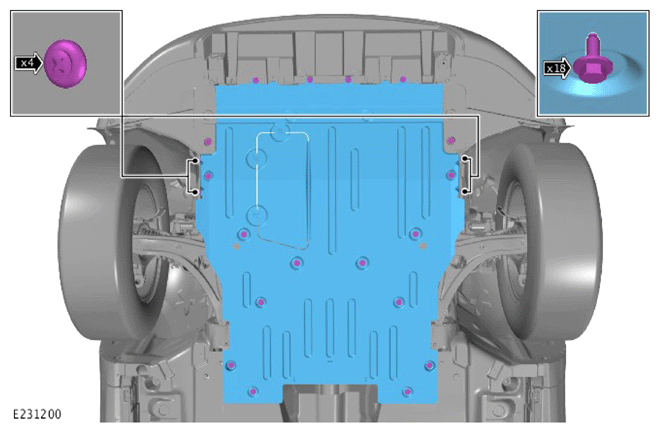

- Remove the 4 fasteners.
- Remove the 18 bolts.
- Remove the engine undershield.
