Engine Compartment Cross Brace (G2297621): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

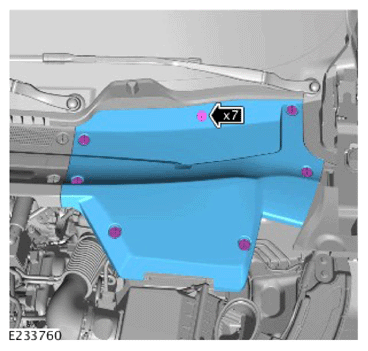

  1. G14453614Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 7 fasteners.
    • Remove the startup battery cover.

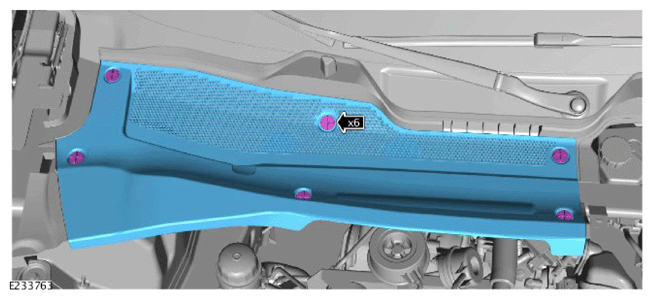

  2. G14453615Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 6 fasteners.
    • Remove the brake fluid reservoir cover.
  3. NOTE: Repeat this step for the other side.

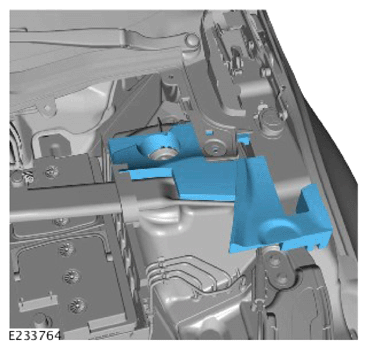

    G14457733Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Noise, Vibration and Harshness (NVH) material.

  4. NOTE: Repeat this step for the other side.

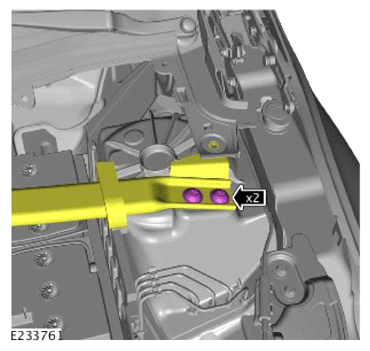

    G14457734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 bolts.

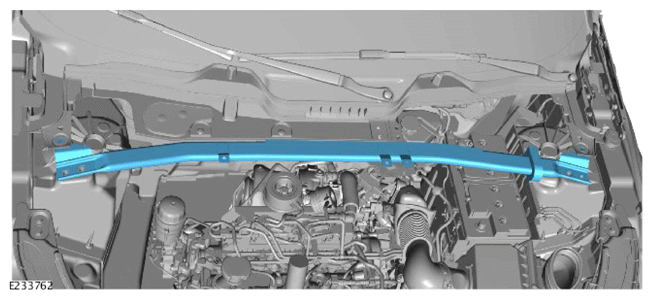

  5. G14457735Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine compartment cross brace.
