Cowl Panel (G2300820): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the front windshield wiper arm.
Refer to: WINDSHIELD WIPER ARM .
Remove the windshield molding.
Refer to: WINDSHIELD MOLDING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

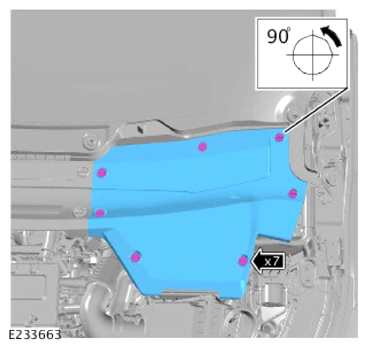

- Release the 7 clips.
- Remove the battery cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

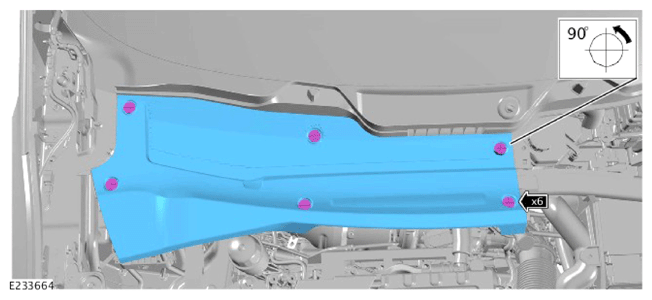

- Release the 6 clips.
- Remove the access cover.
NOTE: Do not remove the component at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

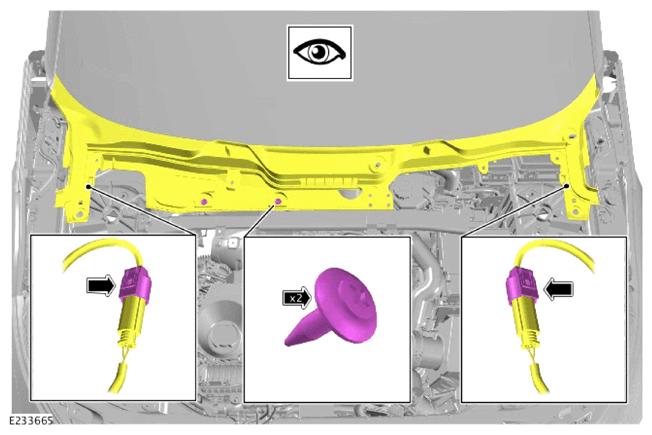

- Remove the 2 clips.
- Disconnect the 2 electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

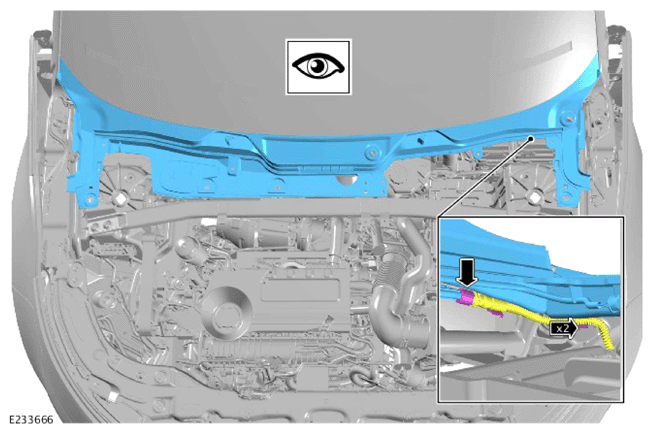

- Disconnect the windshield washer jet hose.
- Remove the cowl panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

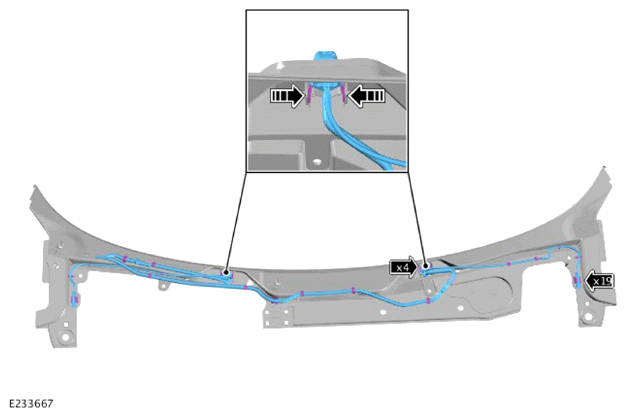

- Release the 19 clips.
- Remove the 2 windshield washer jets.
- Remove the windshield washer jets with the hose assembly.
