Bumpers (G2319899)

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

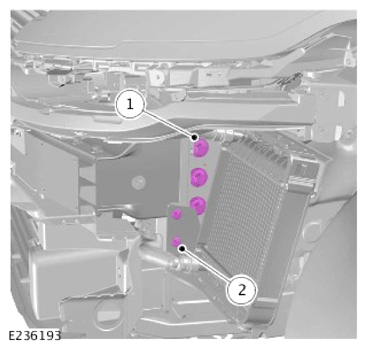

1	Front armature bolts	170	125	-
2	Auxiliary radiator bolts	24	18	-

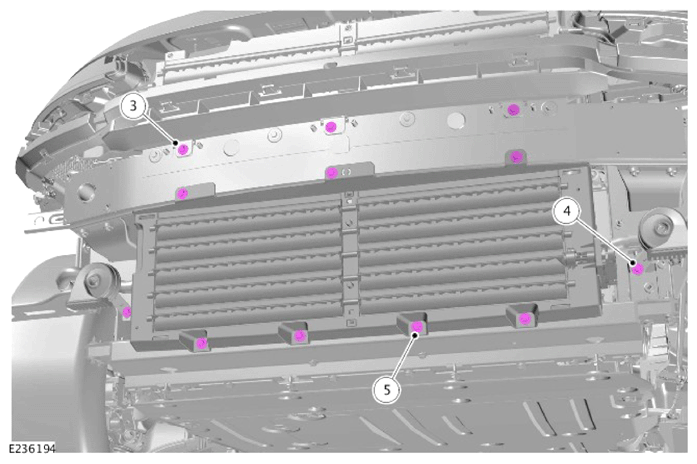

3	Upper active grille air shutter bolts	4.1	-	36
4	Horn assembly bolts	9	-	80
5	Lower active grille air shutter bolts	4.1	-	36

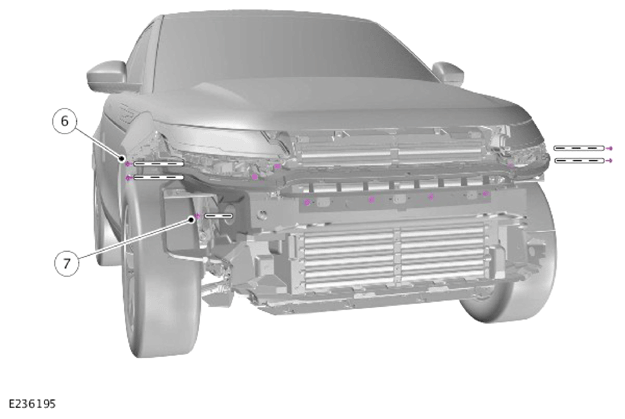

6	Pedestrian impact sensor bolts	9	-	80
7	Auxiliary radiator air duct bolt	9	-	80

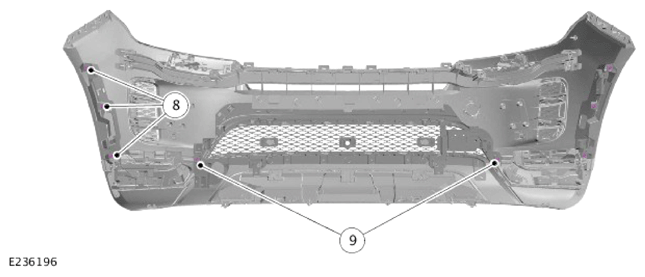

8	Front bumper side bracket screws	1.5	-	13
9	Front bumper lower grille screws	1.5	-	13

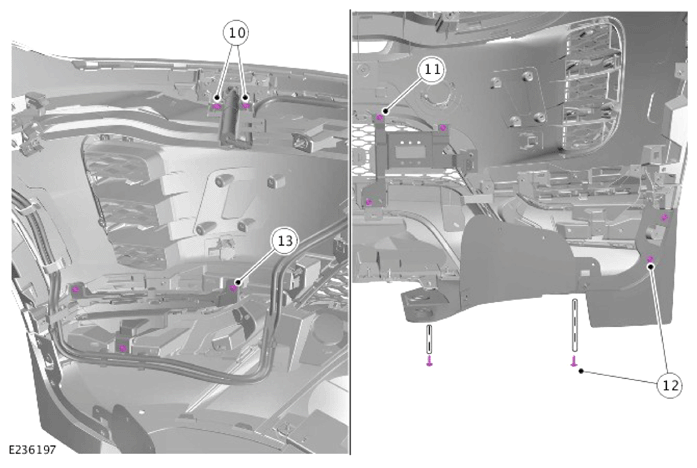

10	Headlamp washer jet screws	1.5	-	13
11	Adaptive Speed Control Module (ASCM) screws	2	-	18
12	Front bumper side finisher screws	1.5	-	13
13	Front fog lamp screws	1.5	-	13

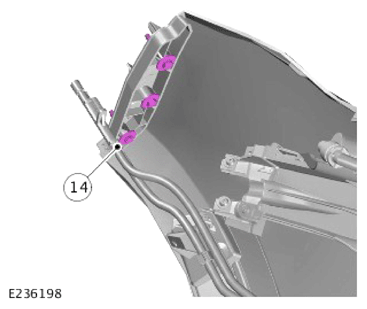

14	Front bumper bolts	10	7	-

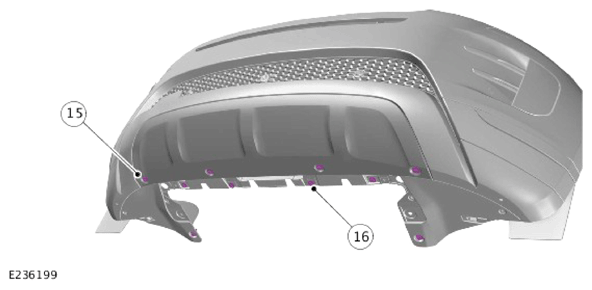

15	Front valance bolts	5.4	-	48
16	Front bumper lower bolts	5.4	-	48

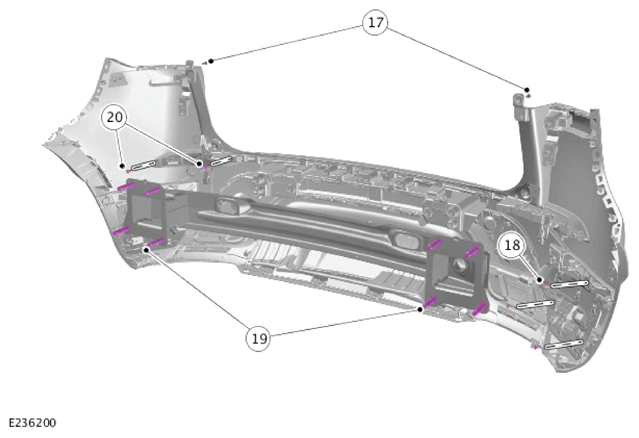

17	Rear bumper bolts	2.5	-	22
18	Rear fog lamp screws	4.5	-	40
19	Rear armature bolts	170	125	-
20	Hands-free tailgate sensor assembly screws	5	-	44
