Rear Bumper (G2299906): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
NOTE: Repeat the procedure for the other side.

Remove the wheel and tire.

Refer to: WHEEL AND TIRE .
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

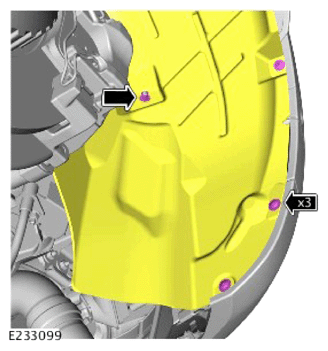

- Remove the 3 screws.
- Remove the nut.
- Release the rear section of the wheel arch liner.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

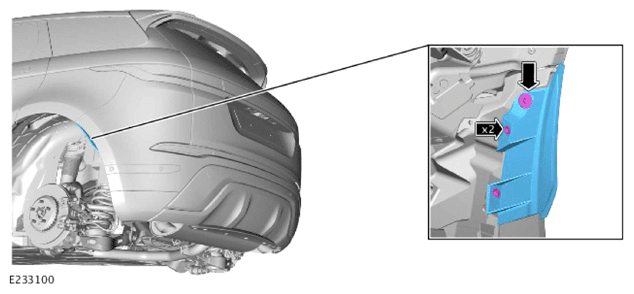

- Remove the 2 screws.
- Remove the bolt.
- Remove the rear wheel arch liner molding.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

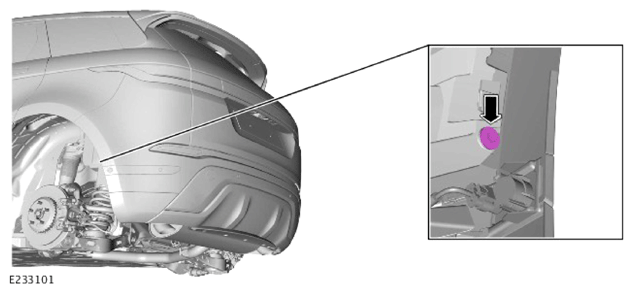

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

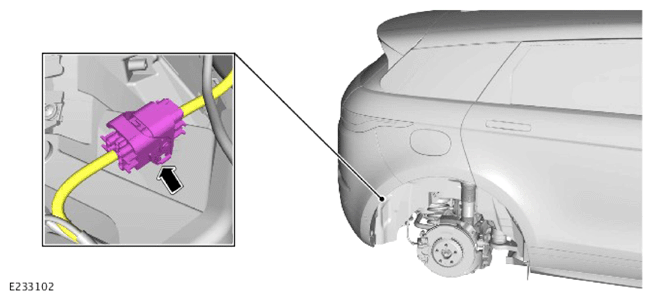

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

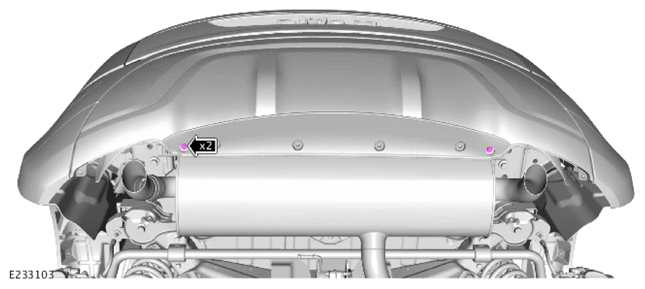

Remove the 2 lower bolts from the rear bumper.
CAUTION: Use a suitable plastic trim tool to release the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

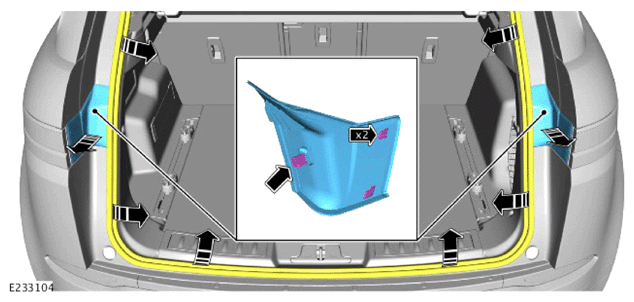

- Release the tailgate weatherstrip.
- Remove the 2 quarter panel finishers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

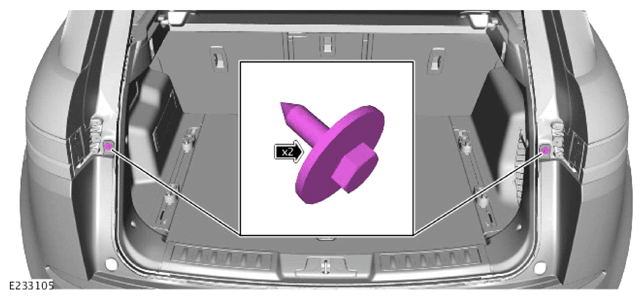

Remove the 2 bolts from the inside of the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

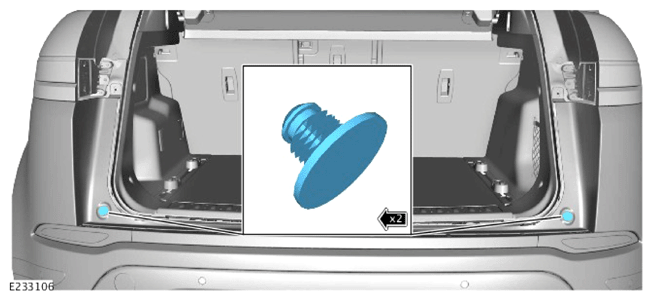

Remove the 2 cover caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

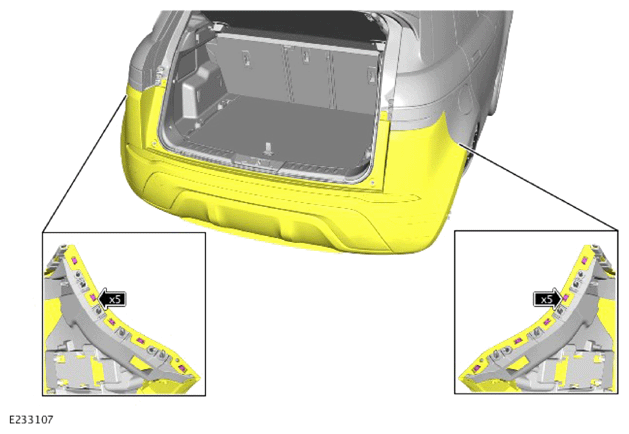

Release the rear bumper on both sides.
CAUTION: Protect the surrounding paintwork to avoid damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

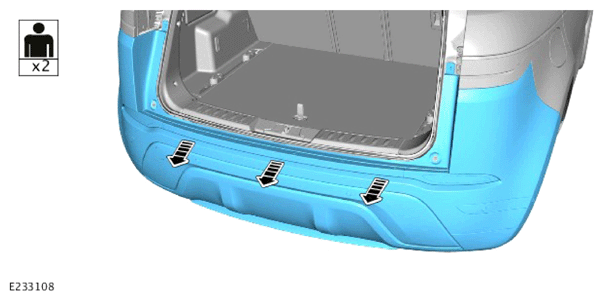

With assistance, remove the rear bumper.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

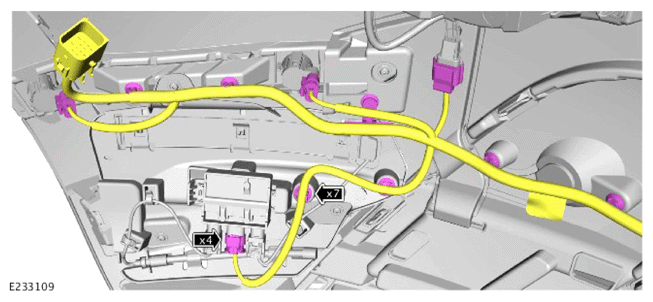

- Disconnect the 4 electrical connectors.
- Release the 7 clips.
- Release the rear bumper wiring harness on the right side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

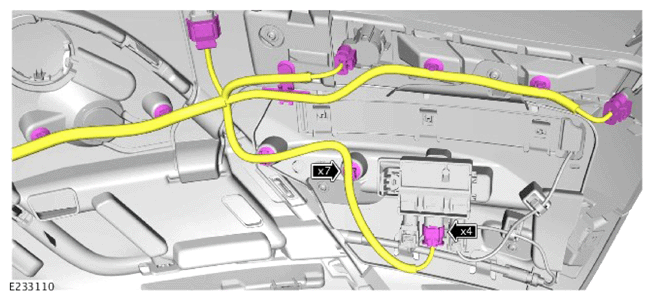

- Disconnect the 4 electrical connectors.
- Release the 7 clips.
- Release the rear bumper wiring harness on the left side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

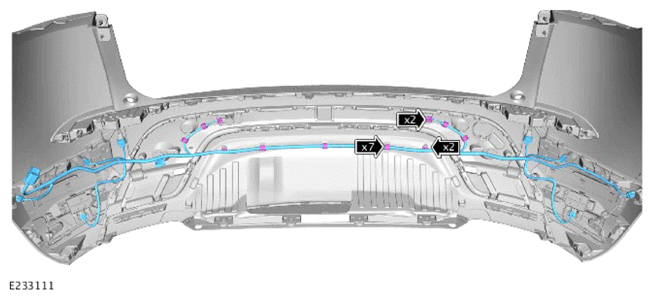

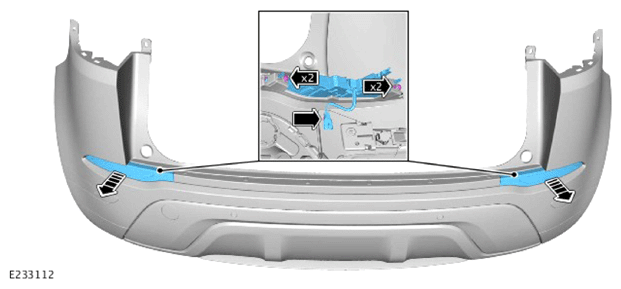

- Disconnect the 2 electrical connectors.
- Release the 9 clips.
- Remove the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

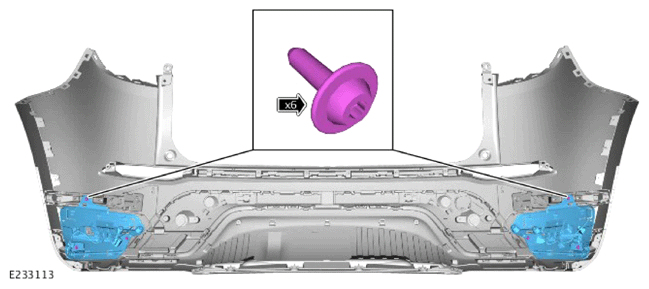

- Remove the 4 screws.
- Release the 2 clips.
- Remove the 2 rear fog lamps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

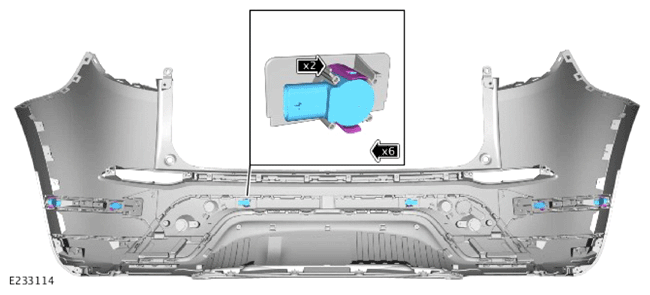

- Remove the 6 screws.
- Remove the hands-free tailgate sensor assemblies on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 8 clips.
- Remove the 4 parking aid sensors.
- Release the 4 clips.
- Remove the 2 park assist sensors.
CAUTION: Use a suitable plastic trim tool to release the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

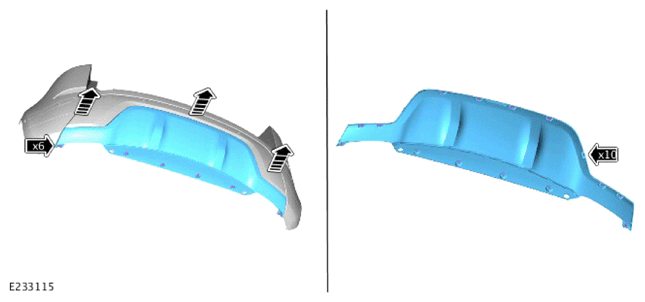

- Remove the 6 screws.
- Release the 10 clips.
- Remove the rear valance.
