Rear Armature (G2299905): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
With assistance, remove the rear bumper.
Refer to: REAR BUMPER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

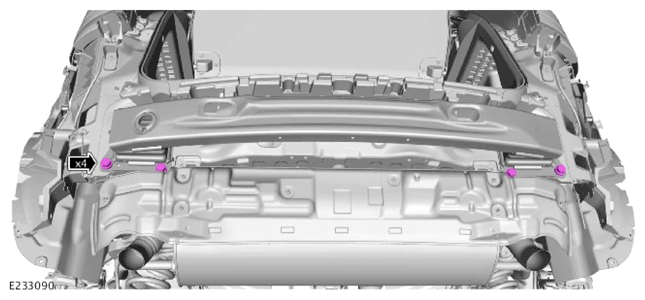

Remove the lower 4 bolts from the rear bumper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

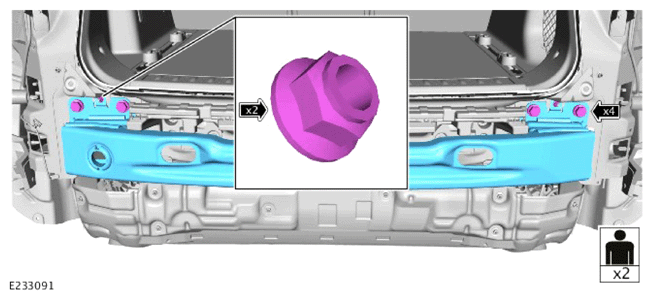

- Remove the 2 nuts.
- Remove the upper 4 bolts from the rear armature.
- With assistance, remove the rear armature.
