Front Bumper (G2299900): Removal

CAUTION: Make sure that the vehicle paintwork is protected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

  2. Remove the front wheels and tires.

    Refer to: WHEEL AND TIRE .

  3. Remove the radiator grille.

    Refer to: RADIATOR GRILLE .

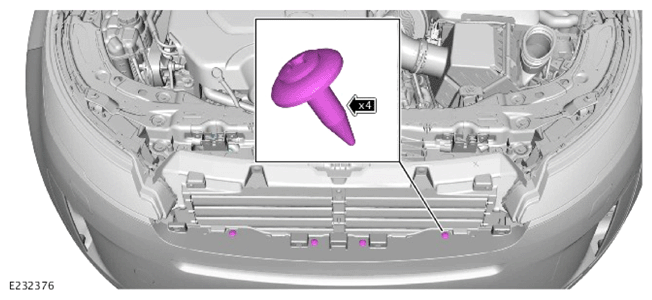

  4. G14459050Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 fasteners from the front bumper upper section.

  5. NOTE: Repeat the step for the other side.
    G14428154Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the brake pad wear sensor wiring harness.
    • Release the shock absorber wiring harness.
    • Release the front wheel speed sensor wiring harness.
    • Remove the 2 nuts.
    • Remove the 2 fasteners.
    • Remove the front wheel arch inner molding.
  6. NOTE: Repeat the step for the other side.
    G14454217Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 8 fasteners.
    • Release the front section of the wheel arch liner.
  7. NOTE: Repeat the step for the other side.
    G14454218Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the screw.
    • Remove the front section of the wheel arch liner.
  8. CAUTION: Be prepared to collect escaping fluids.

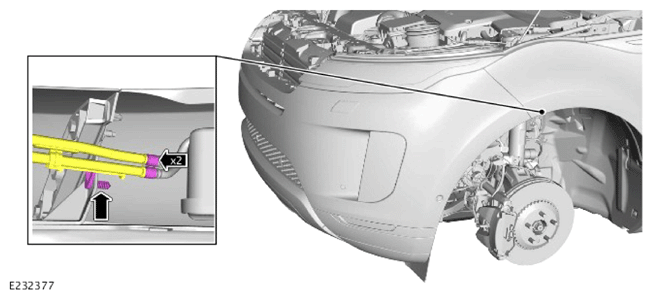

    G14459054Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 washer jet hoses.
    • Release the hose clip.

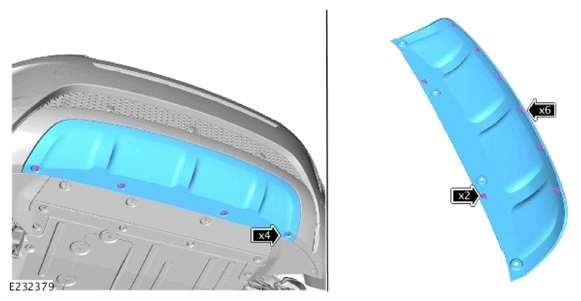

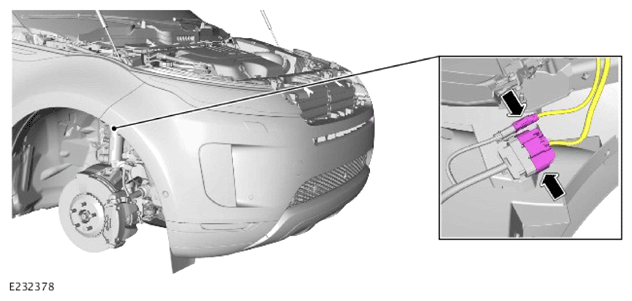

  9. G14459055Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 electrical connectors.

  10. NOTE: Take extra care when releasing the clips.
    G14459056Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 screws.
    • Remove the front valance.

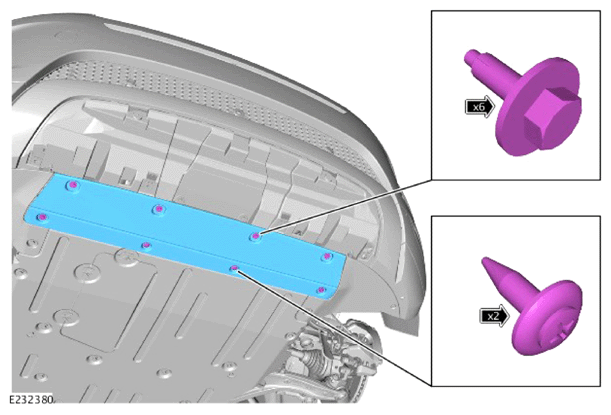

  11. G14459057Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 6 bolts.
    • Remove the 2 fasteners
    • Remove the engine front undershield.

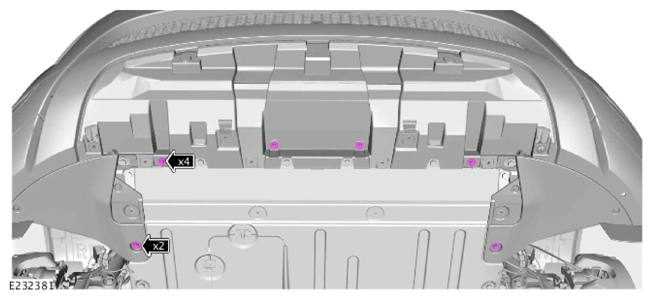

  12. G14459058Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 6 bolts.

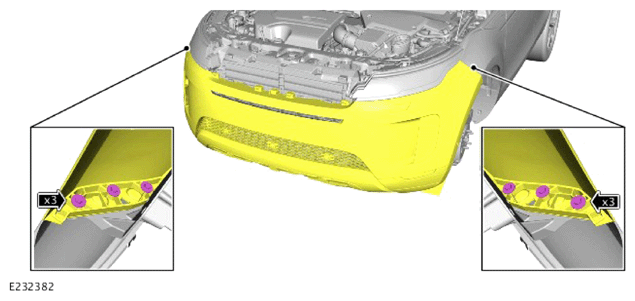

  13. G14459059Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 3 bolts from the both sides of the front bumper.

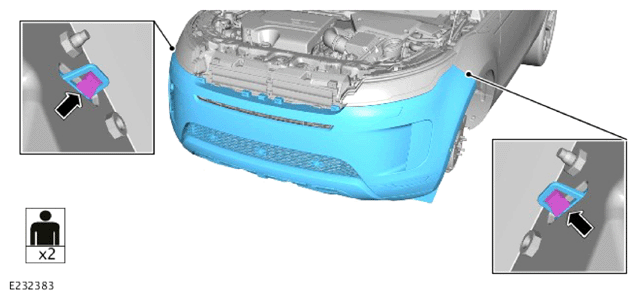

  14. G14459060Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance, remove the front bumper.

  15. NOTE: Only do the following step(s) if a new component is to be installed.

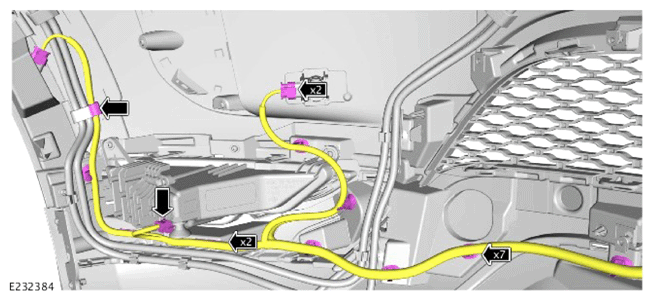

    G14459061Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 3 electrical connectors.
    • Release the wiring harness at 10 clips.

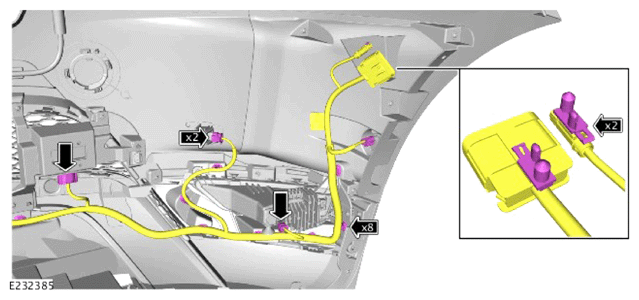

  16. G14459062Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Release the wiring harness at 10 clips.

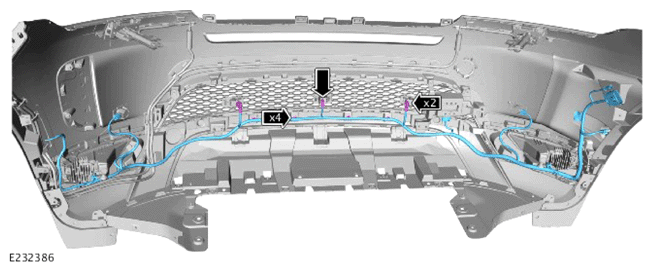

  17. G14459063Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 3 electrical connectors.
    • Release the 4 clips.
    • Remove the front bumper wiring harness.
  18. CAUTION:
    • Take extra care not to damage the component.
    • Use a suitable plastic trim tool to release the component.

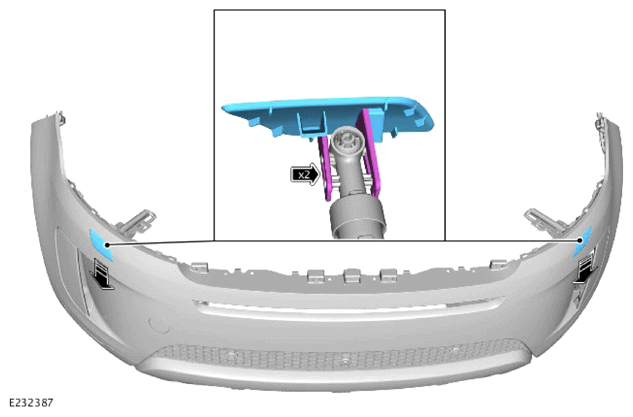

    G14459064Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the headlamp washer jet covers.

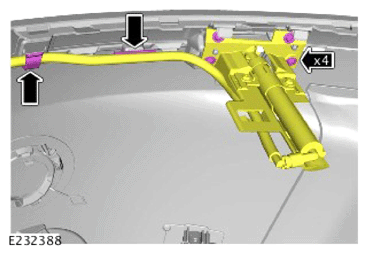

  19. G14459065Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 clips.
    • Remove the 4 screws.
    • Release the washer jet assembly on the right side.

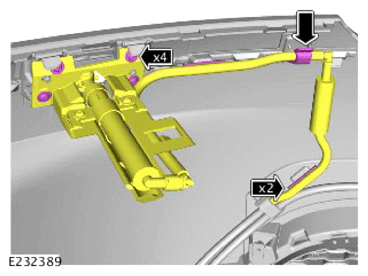

  20. G14459066Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 3 clips.
    • Remove the 4 screws.
    • Release the washer jet assembly on the left side.
  21. CAUTION: Take extra care not to damage the clips.

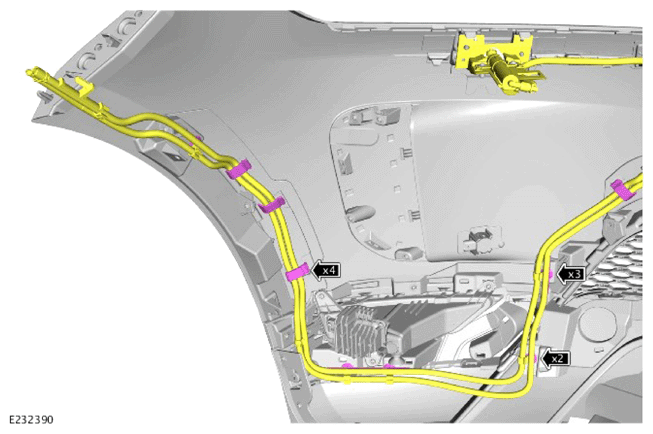

    G14459067Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 7 clips.
    • Release the washer jet hose assembly from the front bumper.

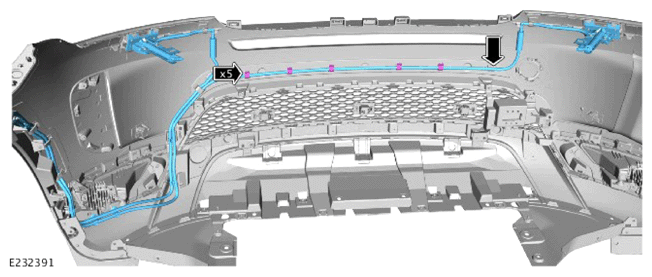

  22. G14459068Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 6 clips.
    • Remove the washer hose assembly.
  23. NOTE: Repeat the step for the other side.

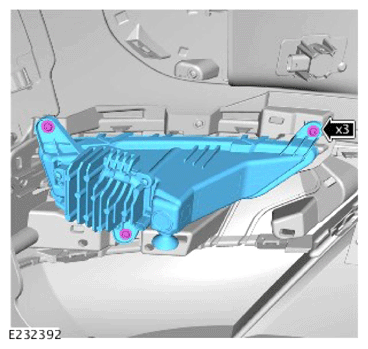

    G14459069Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.
    • Remove the front fog lamp.

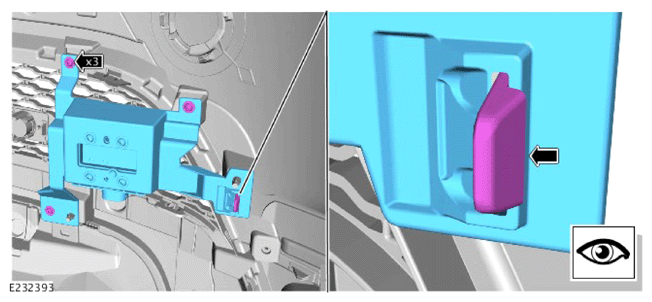

  24. G14459070Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.
    • Release the clip.
    • Remove the Cruise Control Module (CCM).
  25. NOTE: Note the orientation of the component prior to removal.

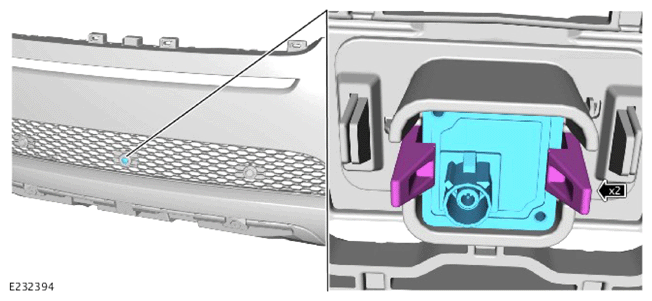

    G14459071Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front proximity camera.

  26. G14459072Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 8 screws.
    • Remove the 2 side finishers from the front bumper.
  27. NOTE: Left side only.

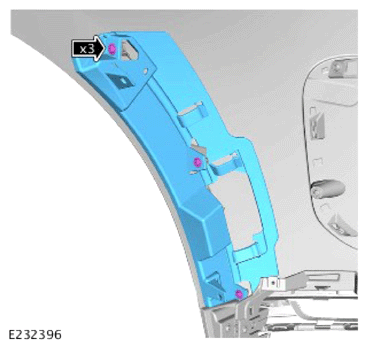

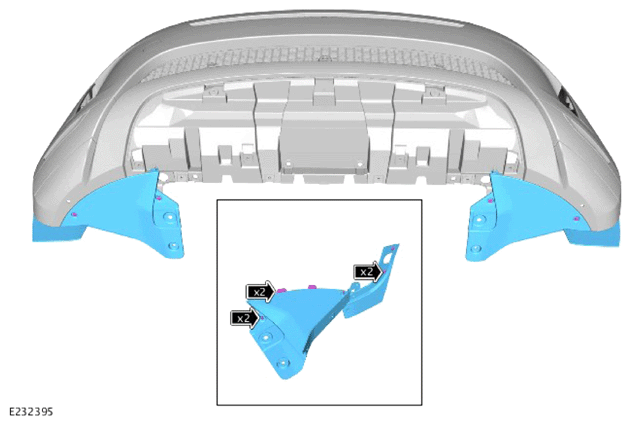

    G14459073Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.
    • Remove the front bumper side bracket.
  28. NOTE: Take extra care when releasing the clips.

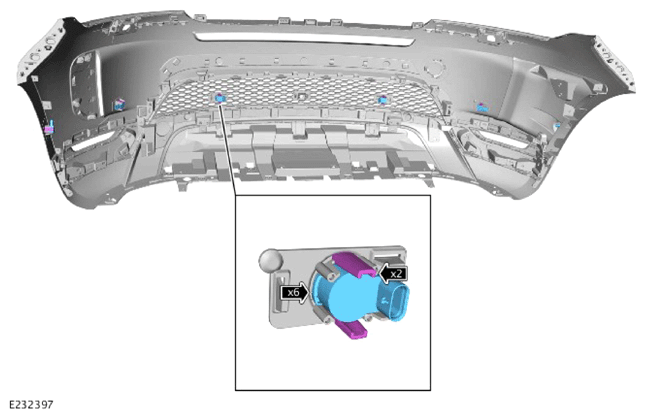

    G14459074Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 parking aid sensors.
    • Remove the 2 park assist sensors.
  29. NOTE: Take extra care when releasing the clips.

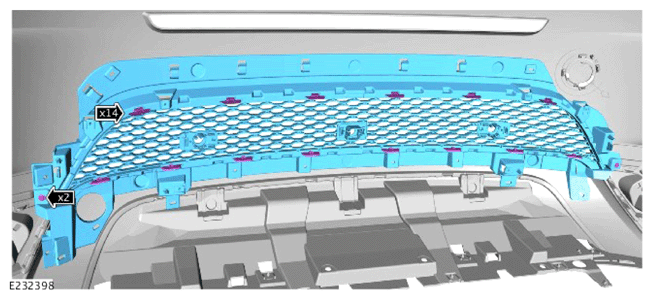

    G14459075Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Remove the front bumper lower grille.
