Front Armature (G2299897): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front bumper.
Refer to: FRONT BUMPER .
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

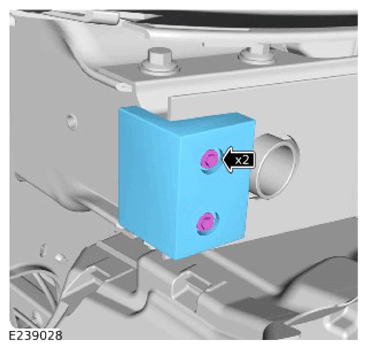

- Remove the 2 bolts.
- Remove the mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

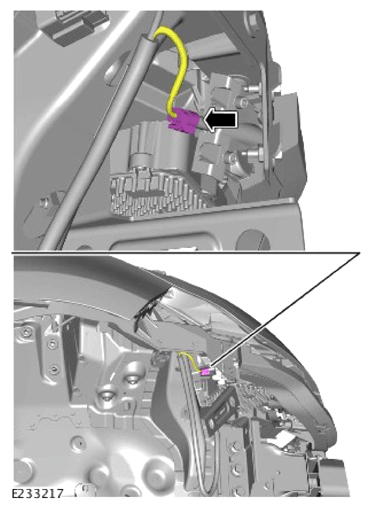

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

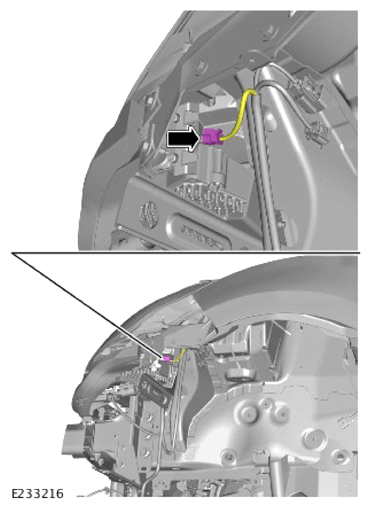

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

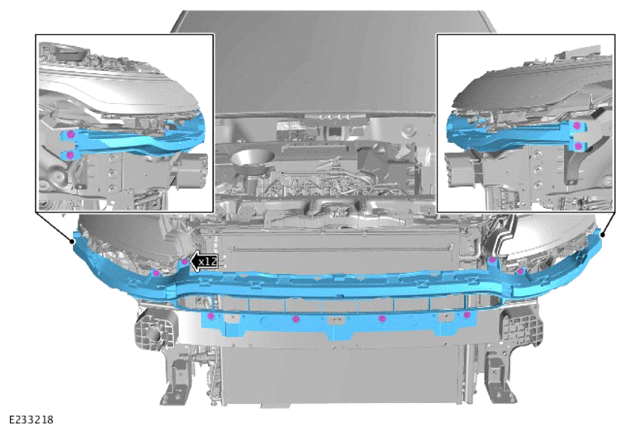

- Remove the 12 bolts.
- Remove the pedestrian impact sensor carrier.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the 9 clips.
- Remove the auxiliary radiator duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the 2 clips.
- Remove the 3 bolts.
- Remove the upper active grille air shutter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Remove the 2 bolts.
- Remove the 2 horn assemblies.
- Release the horn wiring harness on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.
- Release the 5 clips.
- Remove the radiator lower air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the 7 bolts.
- Remove the lower active grille air shutter.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

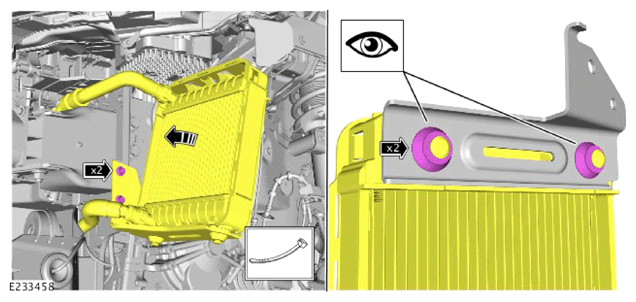

- Remove the 2 bolts.
- Release the auxiliary radiator from the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 3 bolts on the left side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 3 bolts on the right side.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

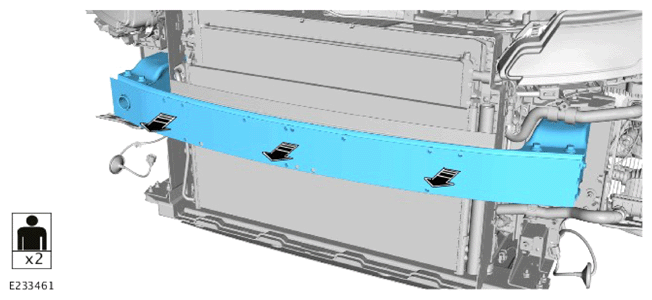

Remove the front armature.
