Body Closures (G2318728)

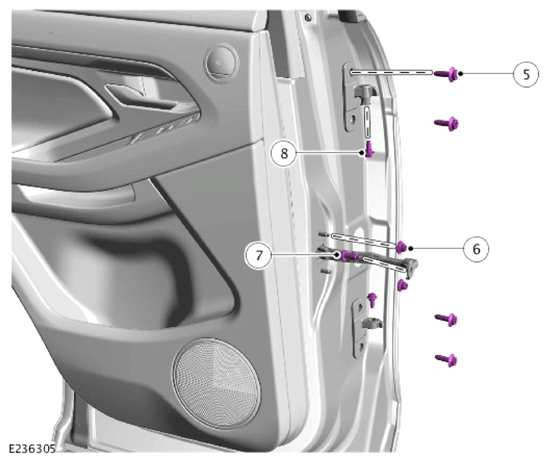

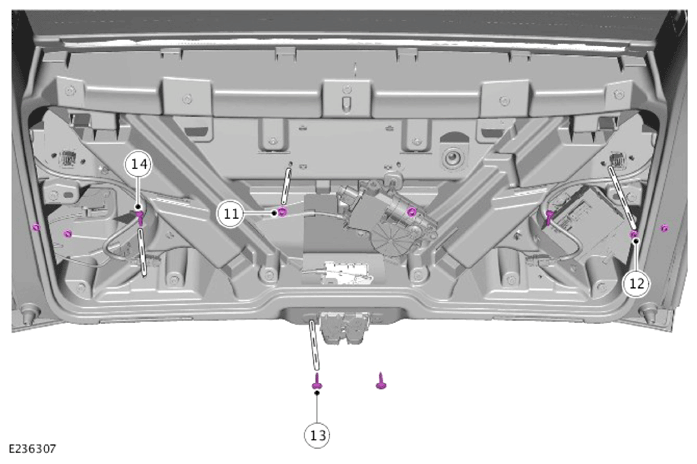

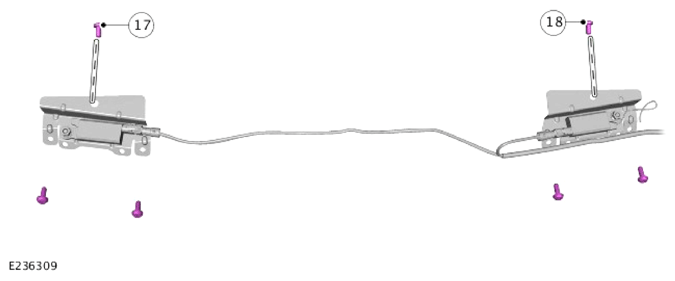

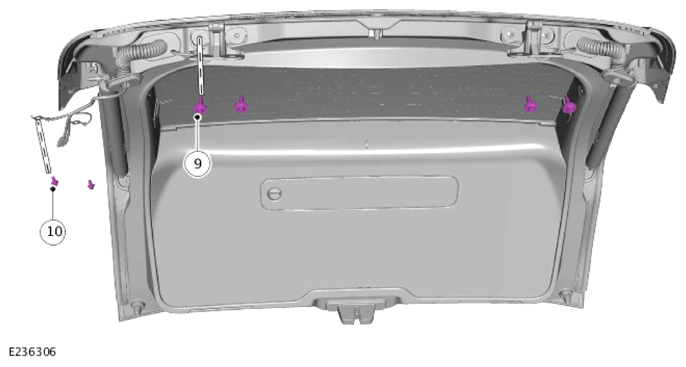

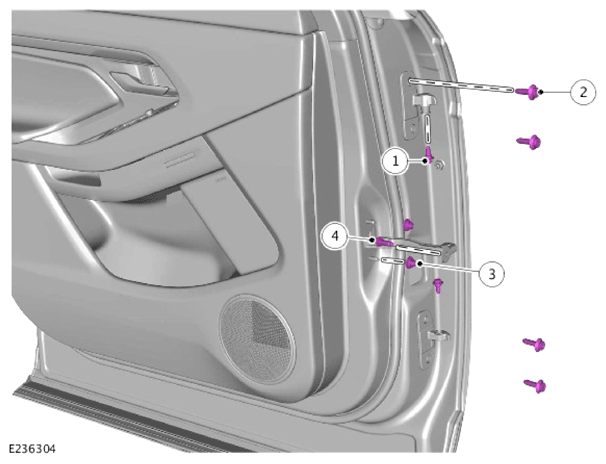

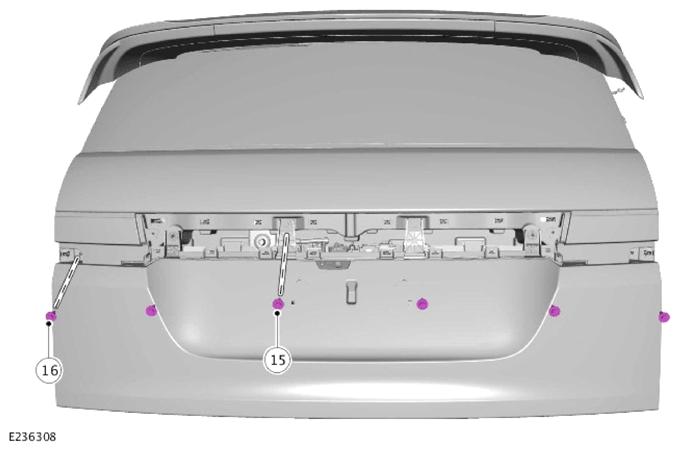

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN
1	Front door hinge bolts	13.5	10	-
2	Front door hinge to door bolts	35	26	-
3	Front door check arm nuts	12	9	-
4	Front door check arm to A-pillar bolt	25	18	-
5	Rear door hinge to door bolts	35	25	-
6	Rear door check arm nuts	12	9	-
7	Rear door check arm to B-pillar bolt	25	18	-
8	Rear door hinge bolts	13.5	10	-
9	Tailgate hinge bolts	25	18	-
10	Tailgate wiring harness ground connection nuts	7	-	62
11	Tailgate molding bracket nuts	4	-	35
12	Tail lamp nuts	2.5	-	22
13	Tailgate latch bolts	10	7	-
14	Tailgate interior door handle bolts	5.4	-	48
15	Tailgate molding bracket bolts	4	-	35
16	Tail lamp bolts	2.5	-	22
17	FM2 antenna amplifier bolts	4.8	-	42
18	AM/FM antenna amplifier bolts	4.8	-	42
