Tailgate (G2309376): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .

  2. Remove the tailgate window.

    Refer to: TAILGATE WINDOW .

  3. Remove the right side D-pillar trim panel.

    Refer to: D-PILLAR TRIM PANEL .

  4. Remove the left side D-pillar trim panel.

    Refer to: D-PILLAR TRIM PANEL .

  5. Remove the left loadspace side trim panel.

    Refer to: LEFT LOADSPACE SIDE TRIM PANEL .

  6. G14456461Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the 2 bolts.
    • Release the wiring harness clip.
    • Release the grommet.
  7. G14456462Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Disconnect the 2 tailgate washer hoses.
    • Release the 2 wiring harness clips.
    • Release the grommet.
  8. WARNING: Make sure that the tailgate is sufficiently supported before the power tailgate actuator is disconnected.
    G13763652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 clips.
    • Disconnect the 2 power tailgate actuators from the vehicle body.
  9. G14457856Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • With assistance, remove the tailgate assembly.
  10. NOTE: Repeat this step for the other side.
    G13763653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the grommet.
    • Release the wiring harness.
    • Remove the power tailgate actuator from the tailgate.
  11. NOTE: Repeat this step for the other side.
    G14457858Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the door handle.
  12. G14457859Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the tailgate closing switch.
    • Disconnect the electrical connector.
    • Remove the tailgate close switch.
  13. NOTE:
    • Discard the 8 clips.
    • Repeat this step for the other side.
    G14457860Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the power tailgate anti-trap sensor.
    • Disconnect the electrical connector.
    • Remove the power tailgate anti-trap sensor.
  14. G14457861Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Remove the 2 clips.
    • Remove the Tailgate Control Module (TGCM).
  15. NOTE: Replace the Tailgate latch trim panel if damaged.
    G14457862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the tailgate latch trim panel.

  16. NOTE: Do not remove the component at this stage.
    G14457863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Release the tailgate latch.
  17. NOTE: Do not remove the component at this stage.
    G14457864Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector from the tailgate latch.

  18. G14457865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the tailgate latch release cable.
    • Remove the tailgate latch.
  19. G14457866Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the tailgate latch actuator.

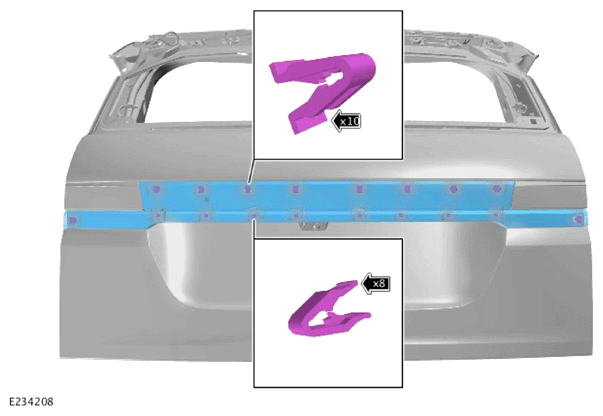

  20. G14457867Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 18 clips.
    • Remove the tailgate finisher.
  21. NOTE: Repeat this step for the other side.
    G14457868Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the 2 nuts.
  22. NOTE: Repeat this step for the other side.
    G14455986Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the tail lamp.
  23. G14457870Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 nuts.

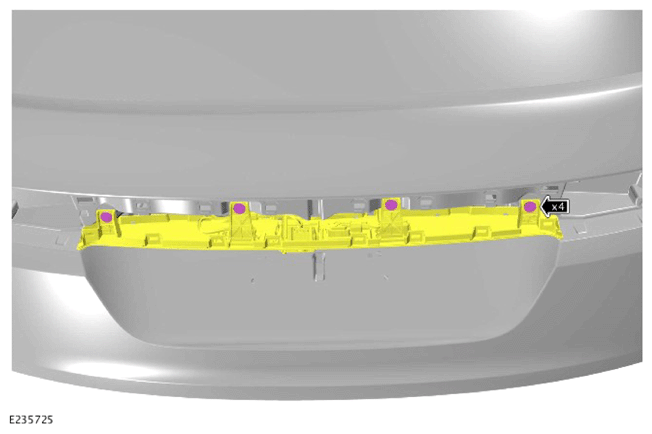

  24. G14457871Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts.

  25. G14457872Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Disconnect the rear proximity camera washer hose.
    • Remove the 2 clips from the bracket.
    • Remove the bracket.
  26. G14457873Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 clips.
    • Release the activity key transceiver module and bracket.
  27. G14457874Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the activity key transceiver module and bracket.
  28. G14457875Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Release the 3 wiring harness clips.
    • Release the grommet.
  29. G14456465Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the grommet.
    • Remove the wiring harness.
  30. G14457877Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 grommets.
    • Release the 5 wiring harness clips.
  31. G14456467Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the grommet.

  32. G14456468Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 16 wiring harness clips.
    • Release the 3 grommets.
    • Remove the left wiring harness.
  33. CAUTION: The seals are to be reused unless damaged.
    G14455709Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the AM/FM antenna amplifier.
  34. CAUTION: The seals are to be reused unless damaged.
    G14455729Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the FM2 antenna amplifier.
  35. NOTE: Repeat this step for the other side.
    G14457882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the bump stop.
