Tailgate (G2309376): Installation

CAUTION: The seals are to be reused unless damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

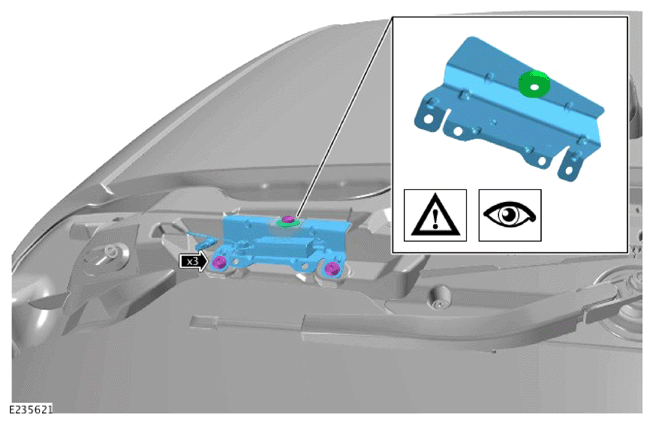

- Install the FM2 antenna amplifier.
- Install and tighten the 3 bolts.
  Torque : 4.8 Nm
CAUTION: The seals are to be reused unless damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

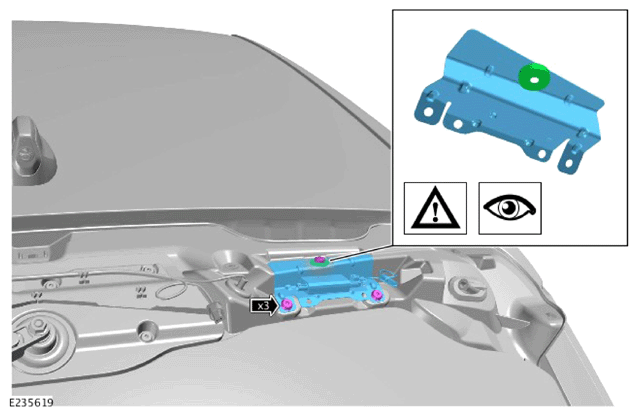

- Install the AM/FM antenna amplifier.
- Install and tighten the 3 bolts.
  Torque : 4.8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

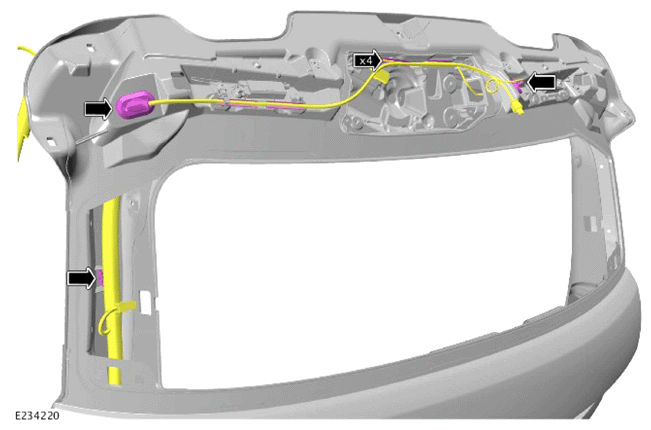

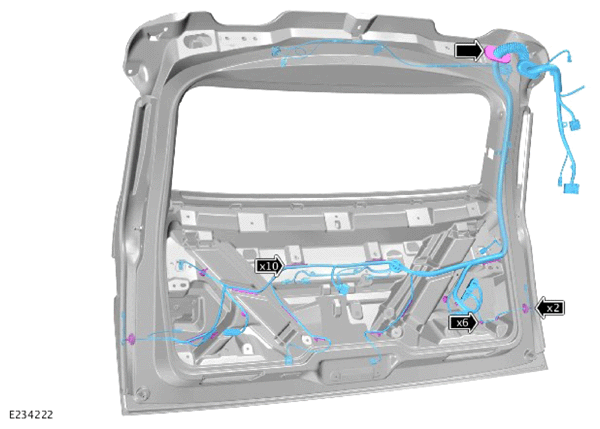

- Install the left wiring harness.
- Secure the 16 wiring harness clips.
- Install the 3 grommets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

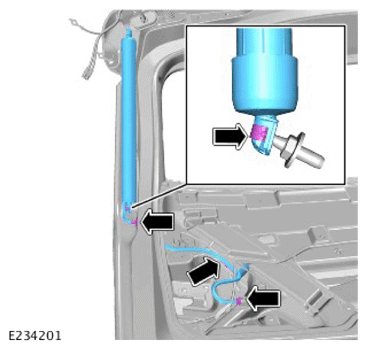

Install the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

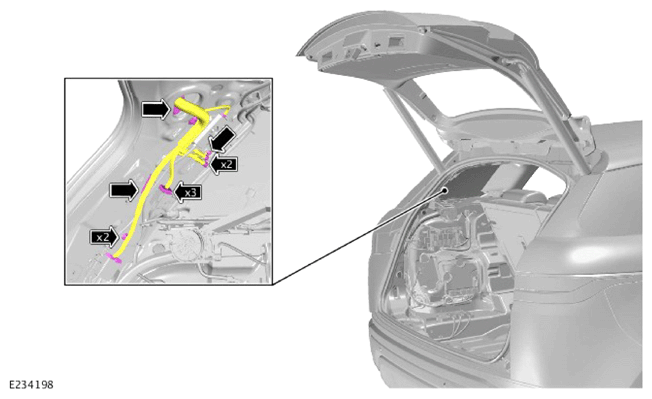

- Secure the 5 wiring harness clips.
- Install the 2 grommets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

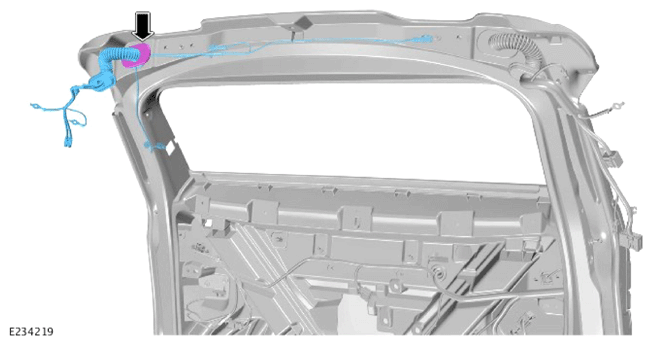

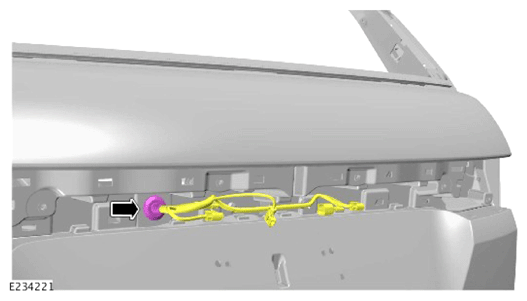

- Install the right wiring harness.
- Install the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

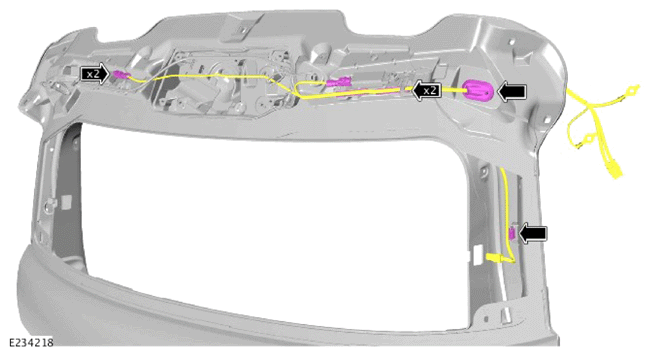

- Connect the 2 electrical connectors.
- Install the 3 wiring harness clips.
- Install the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

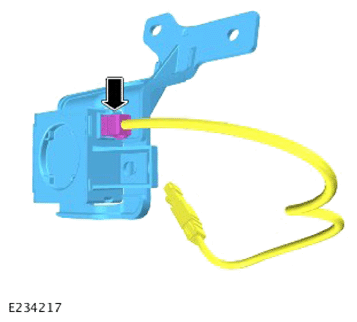

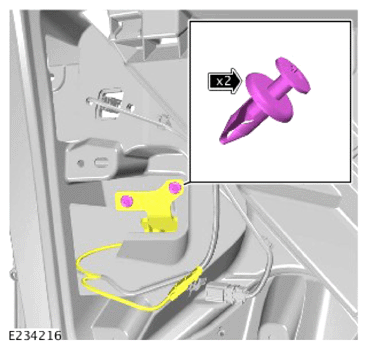

- Install the activity key transceiver module and bracket.
- Install the 2 clips.
- Secure the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

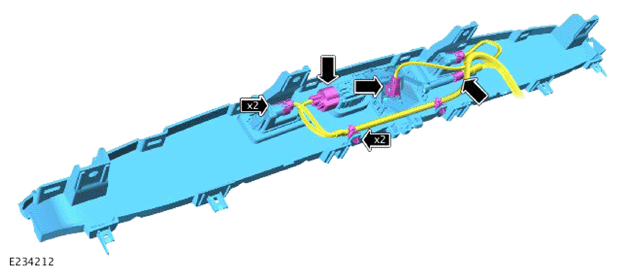

- Connect the 3 electrical connectors.
- Connect the rear proximity camera washer hose.
- Install the bracket.
- Install and tighten 4 bolts.
  Torque : 4 Nm
- Install the 2 clips into the bracket to secure wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

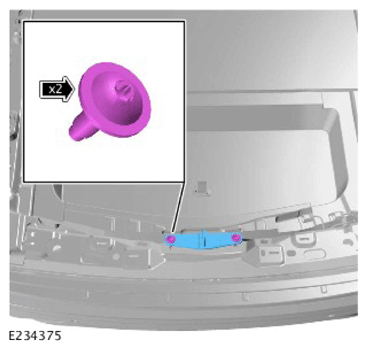

- Install and tighten 2 nuts.
  Torque : 4 Nm
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the tail lamp.
- Install and tighten the bolt.
  Torque : 2.5 Nm
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install and tighten the 2 nuts.
  Torque : 2.5 Nm
- Connect the electrical connector.
CAUTION: Install the component in the sequence shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

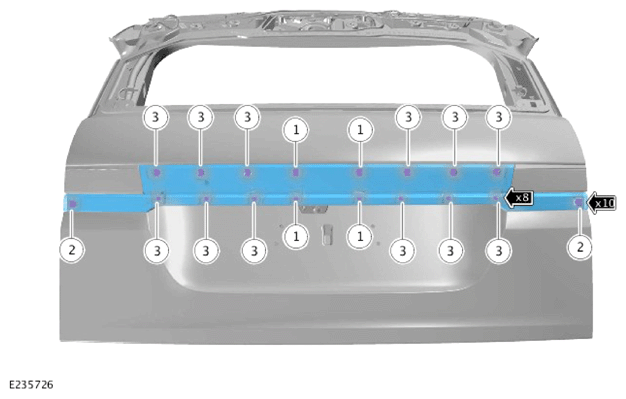

Install the tailgate finisher.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

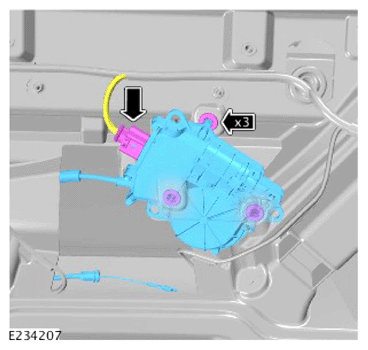

- Install the tailgate latch actuator.
- Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

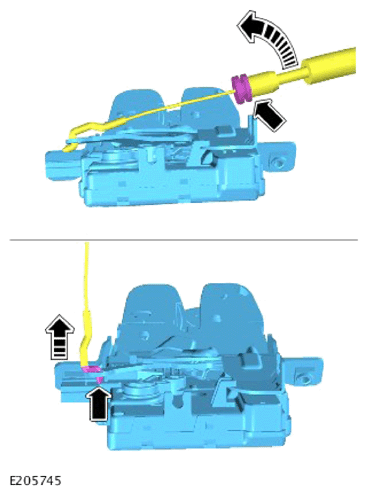

Install the tailgate latch cable to the tailgate latch.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

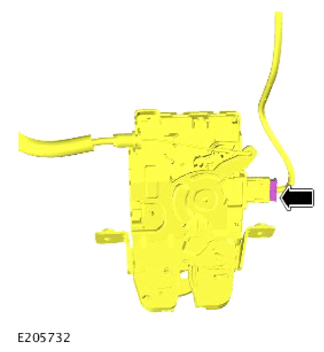

Connect the electrical connector to the tailgate latch.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

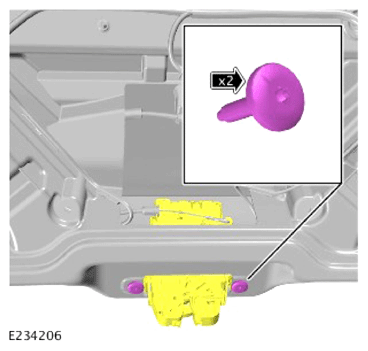

- Install the tailgate latch into the tailgate.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
CAUTION: Inspect the component, replace if damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

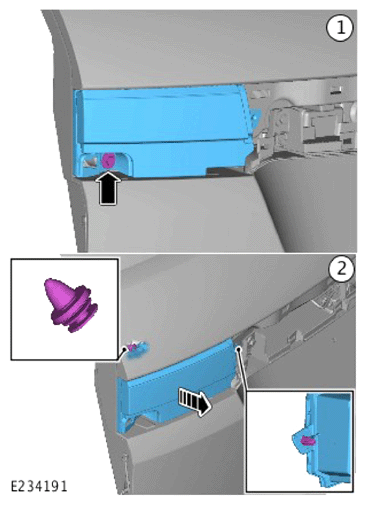

Install the tailgate latch trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

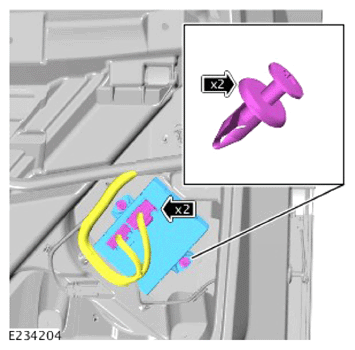

- Install the Tailgate Control Module (TGCM).
- Install the 2 clips.
- Connect the 2 electrical connectors.

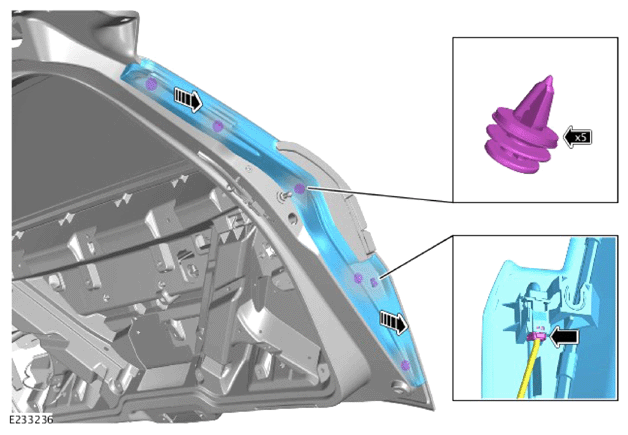

NOTE:
- Install the 8 new clips.
- Repeat this step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Install the power tailgate anti-trap sensor.
  Renew Part: Anti-trap sensor clip(s) Quantity: 8 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

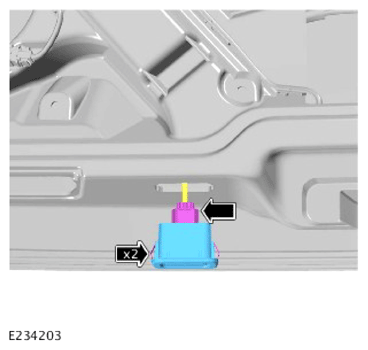

- Connect the electrical connector.
- Install the tailgate close switch.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

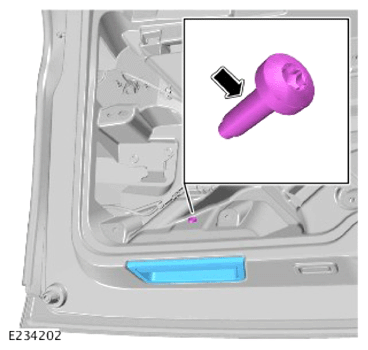

- Install the door handle.
- Install and tighten the bolt.
  Torque : 5.4 Nm
NOTE: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

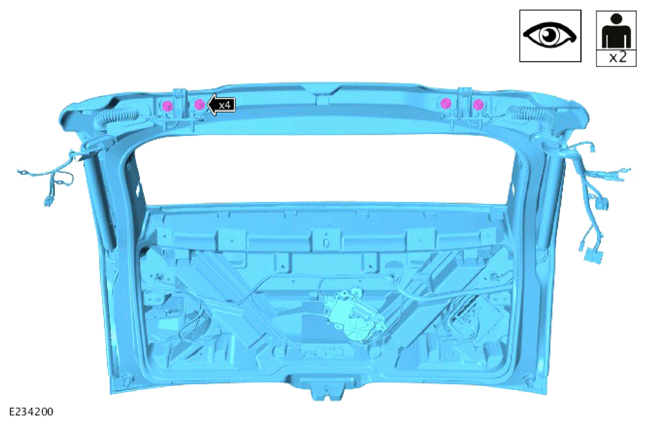

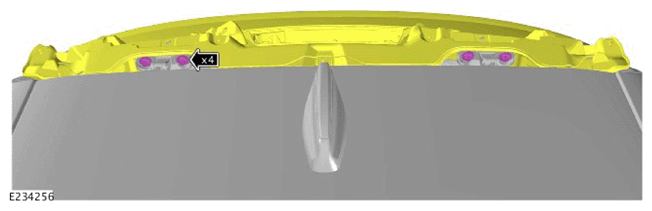

- With assistance, install the tailgate assembly.
- Install the 4 bolts.
NOTE: Only do the adjustment procedure if the measured gaps are not matching with the shown values.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

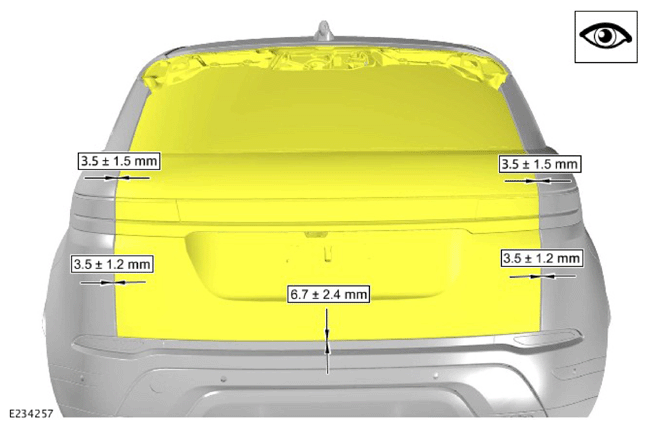

Check the gap around the tailgate and adjust if necessary.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

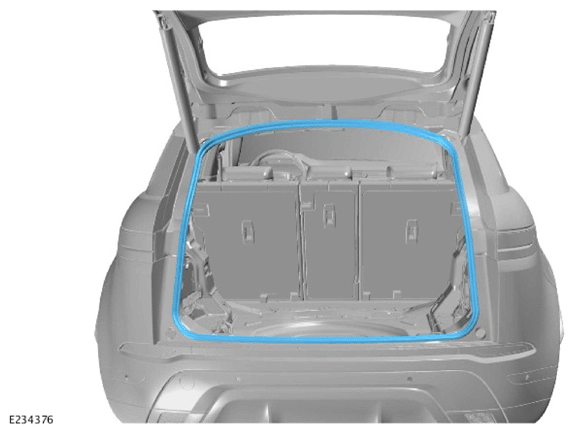

Remove the tailgate aperture seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 6 clips.
- Disconnect the 2 electrical connectors.
- Remove the luggage compartment treadplate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the tailgate striker.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Align the tailgate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Tighten the 4 bolts.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

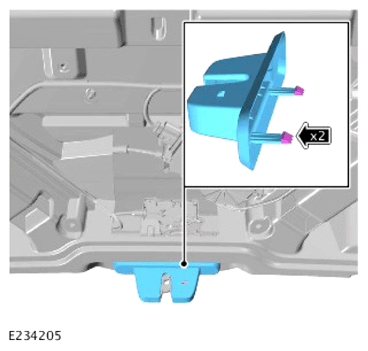

- Install the tailgate striker.
- Install and tighten the 2 bolts.
  Torque : 24 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

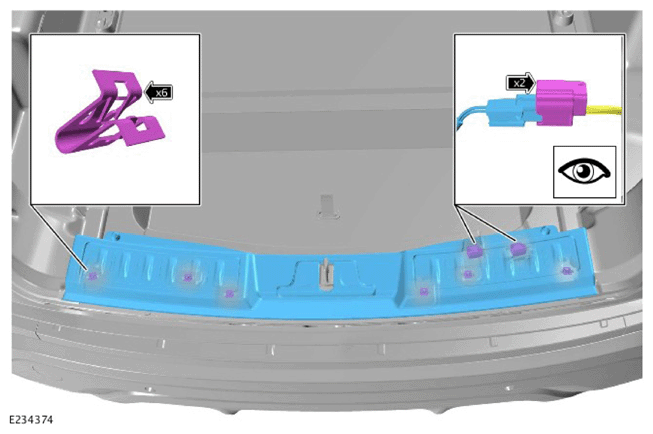

- Install the luggage compartment treadplate.
- Connect the 2 electrical connectors.
- Install the 6 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the tailgate aperture seal.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

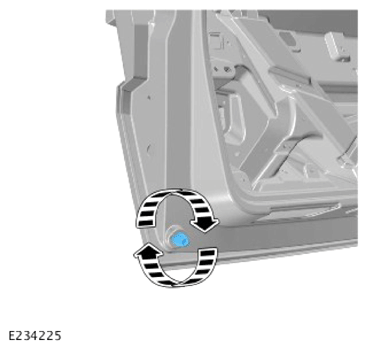

Install the bump stop.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

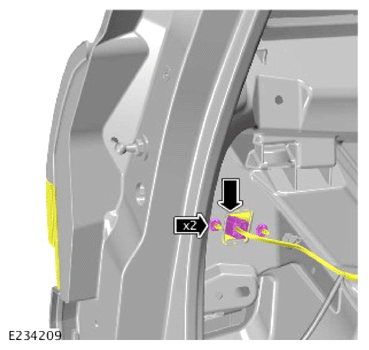

- Connect the electrical connector.
- Install the power tailgate actuator to the tailgate.
- Install the grommet.
- Secure the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

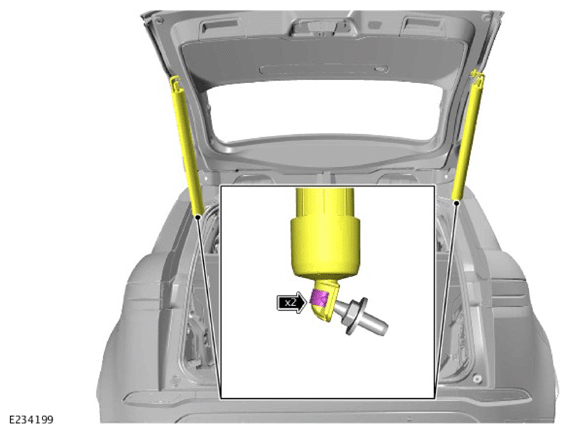

- Connect the 2 power tailgate actuators to the vehicle body.
- Secure the 2 clips.
NOTE: Make sure that the wiring harness is correctly routed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

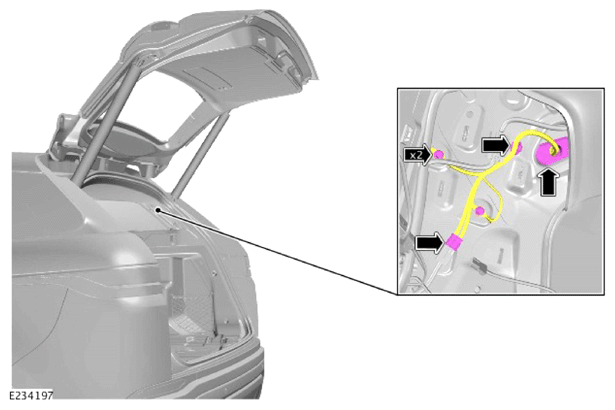

- Connect the 2 electrical connectors.
- Connect the 2 tailgate washer hoses.
- Install the grommet.
- Secure the 2 wiring harness clips.
NOTE: Make sure that the wiring harness is correctly routed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

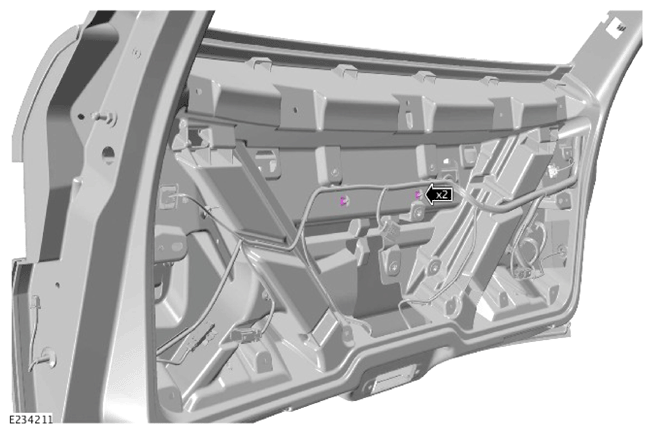

- Connect the electrical connector.
- Install and tighten 2 bolts.
  Torque : 7 Nm
- Secure the wiring harness clip.
- Install the grommet.
Install the tailgate window.
Refer to: TAILGATE WINDOW .
Install the left side D-pillar trim panel.
Refer to: D-PILLAR TRIM PANEL .
Install the right side D-pillar trim panel.
Refer to: D-PILLAR TRIM PANEL .
Install the left loadspace trim panel.
Refer to: LEFT LOADSPACE SIDE TRIM PANEL .
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
