Power Tailgate Open Switch (G2312507): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the tailgate molding.

    Refer to: TAILGATE MOLDING .

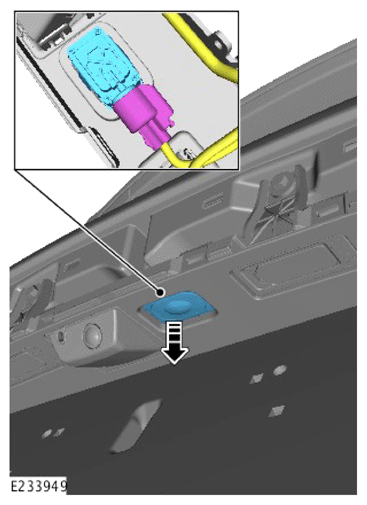

  2. G14457922Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the tailgate open switch electrical connector.
    • Remove the tailgate open switch.
