Power Tailgate Close Switch (G2341250): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

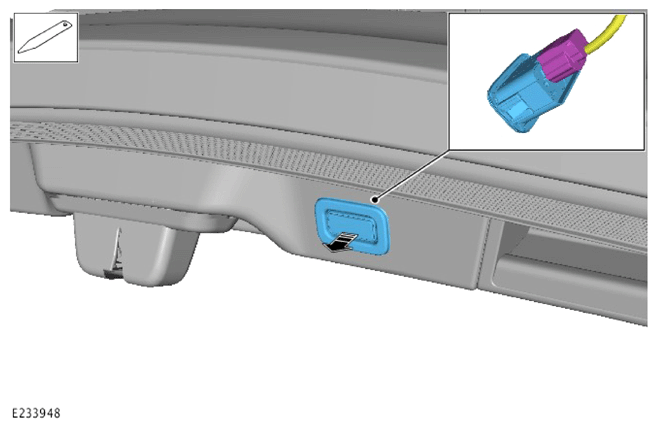

  1. G14457921Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the power tailgate close switch.
    • Disconnect the power tailgate close switch electrical connector.
    • Remove the power tailgate close switch.
