Fuel Flap Assembly (G2298092): Removal

WARNING: Avoid flames, sparks or lighted substances.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

Protect the surrounding paintwork and body.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

Vehicles with diesel engine

Before working on the fuel system make sure to study the fuel system health and safety information.
Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS .

The following step(s) applies to:

Vehicles with petrol engine
Before working on the fuel system make sure to study the fuel system health and safety information.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .

The following step(s) applies to:

All vehicles
Remove the rear right wheel and tire.
Refer to: WHEEL AND TIRE .
Remove the rear right wheel arch liner.
Refer to: REAR WHEEL ARCH LINER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

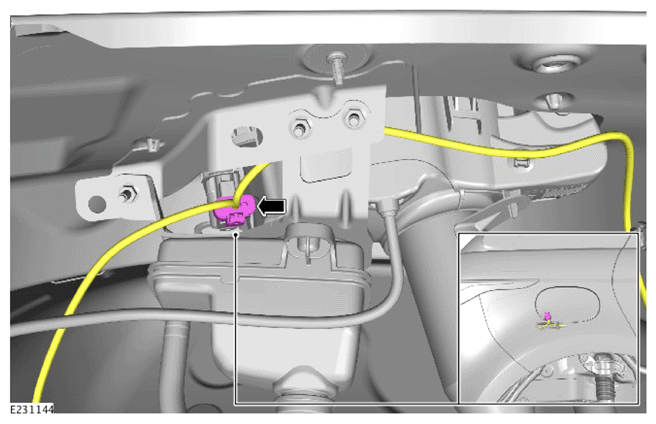

Disconnect the fuel flap latch electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

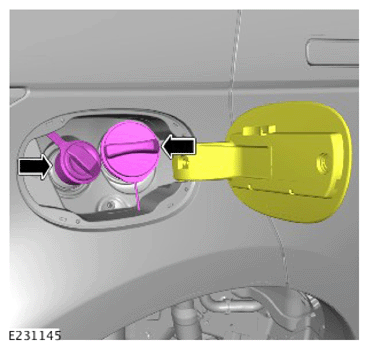

- Open the fuel flap.
- Remove the 2 caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable knife, pierce the fuel filler door assembly in the locations shown.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

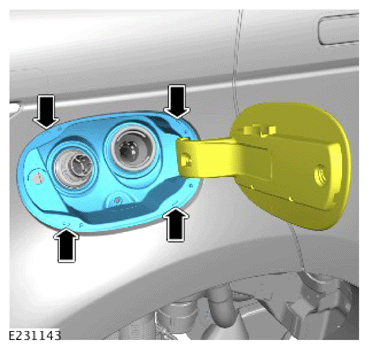

- Release the 4 clips.
- Release the fuel flap assembly.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

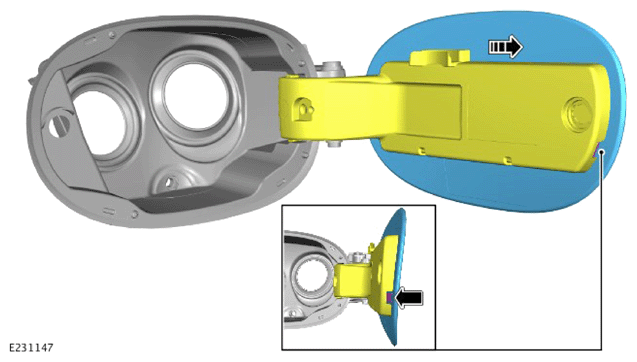

- Release the clip.
- Remove the fuel flap.
