Fuel Flap Assembly (G2298092): Installation

NOTE: Only do this step if previously removed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

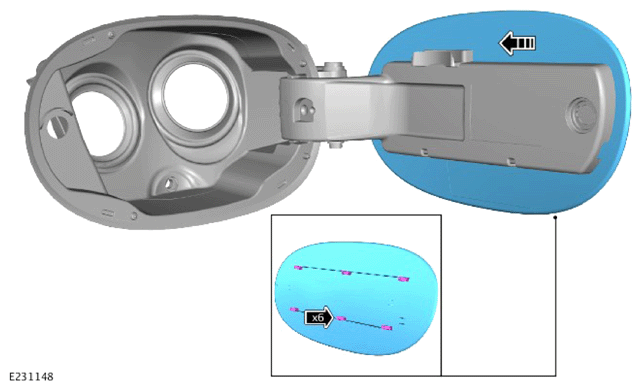

Install the fuel flap.
Install the fuel flap assembly.
- Install the fuel filler cap and diesel exhaust fluid cap.
- Close the fuel flap.
Connect the fuel flap latch electrical connector.
Install the rear right wheel arch liner.
Refer to: REAR WHEEL ARCH LINER .
Install the rear right wheel and tire.
Refer to: WHEEL AND TIRE .
