Remote Function Actuator

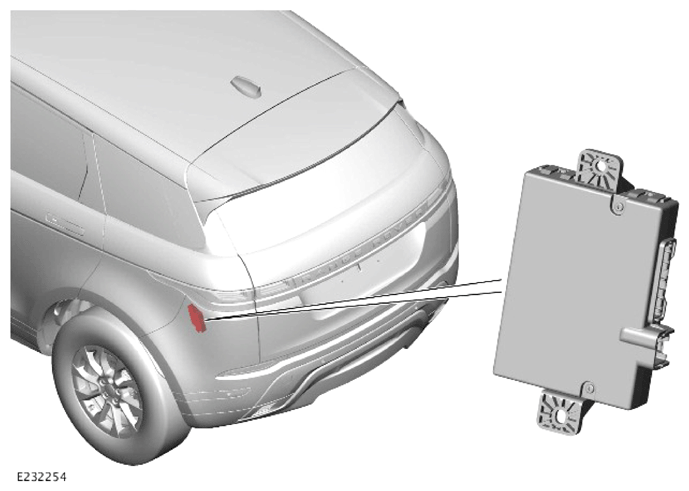

G14457782Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The Remote Function Actuator (RFA) is installed behind the left side trim panel in the loadspace. The RFA receives power supply from the Passenger Junction Box (PJB) and is connected on HS CAN  body systems bus.
