Hands-Free Tailgate Assemblies (If Equipped)

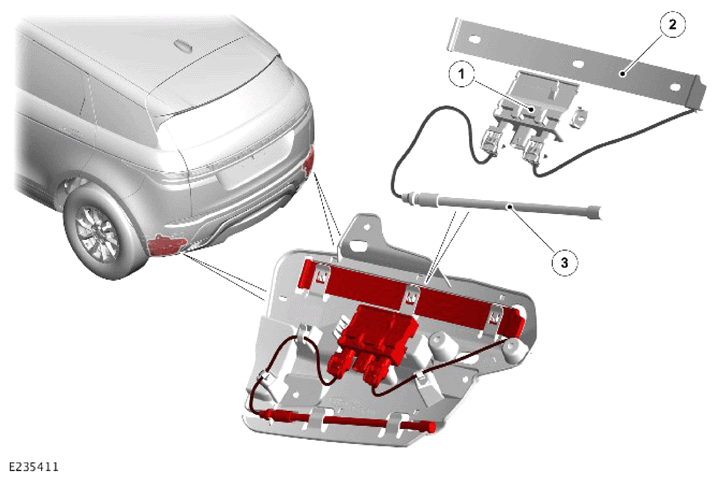

G14457784Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Hands-free tailgate module
2 Hands-free tailgate upper sensor
3 Hands-free tailgate lower sensor

There are 2 hands-free tailgate assemblies located behind the rear bumper cover. The hands-free tailgate assemblies transmit the opening request to the Tailgate Control Module (TGCM) through LIN  .
