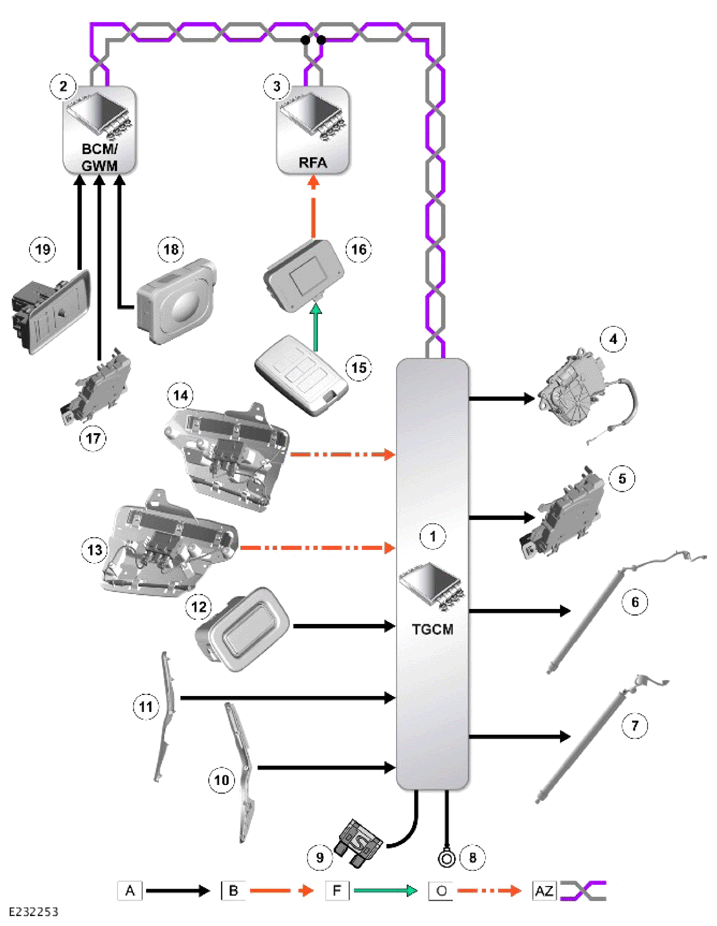

Control Diagram - 1 Of 1
A = HARDWIRED: B = K-BUS: F = RF TRANSMISSION: O = LIN : AZ = HS CAN BODY SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Tailgate Control Module (TGCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Remote Function Actuator (RFA) |
| 4 | Tailgate soft close actuator |
| 5 | Tailgate latch |
| 6 | Left tailgate actuator |
| 7 | Right tailgate actuator |
| 8 | Ground |
| 9 | Power supply |
| 10 | Right tailgate anti-trap |
| 11 | Left tailgate anti-trap |
| 12 | Tailgate close switch |
| 13 | Right hands-free tailgate assembly |
| 14 | Left hands-free tailgate assembly |
| 15 | Smart key |
| 16 | RF receiver |
| 17 | Tailgate latch |
| 18 | Exterior tailgate release switch |
| 19 | Interior tailgate release switch |
