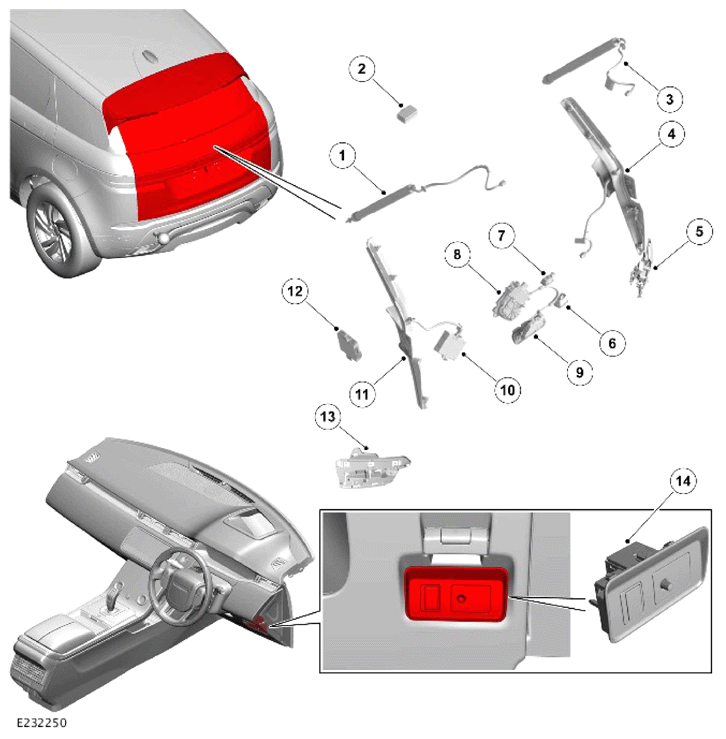

Component Location - 1 Of 1
NOTE:
Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Left tailgate actuator |
| 2 | Radio Frequency (RF) receiver |
| 3 | Right tailgate actuator |
| 4 | Right tailgate anti-trap |
| 5 | Right hands-free tailgate assembly (if equipped) |
| 6 | Tailgate close switch |
| 7 | Exterior tailgate release switch |
| 8 | Tailgate soft close actuator |
| 9 | Tailgate latch |
| 10 | Tailgate Control Module (TGCM) |
| 11 | Left tailgate anti-trap |
| 12 | Remote Function Actuator (RFA) |
| 13 | Left hands-free tailgate assembly (if equipped) |
| 14 | Interior tailgate release switch |
