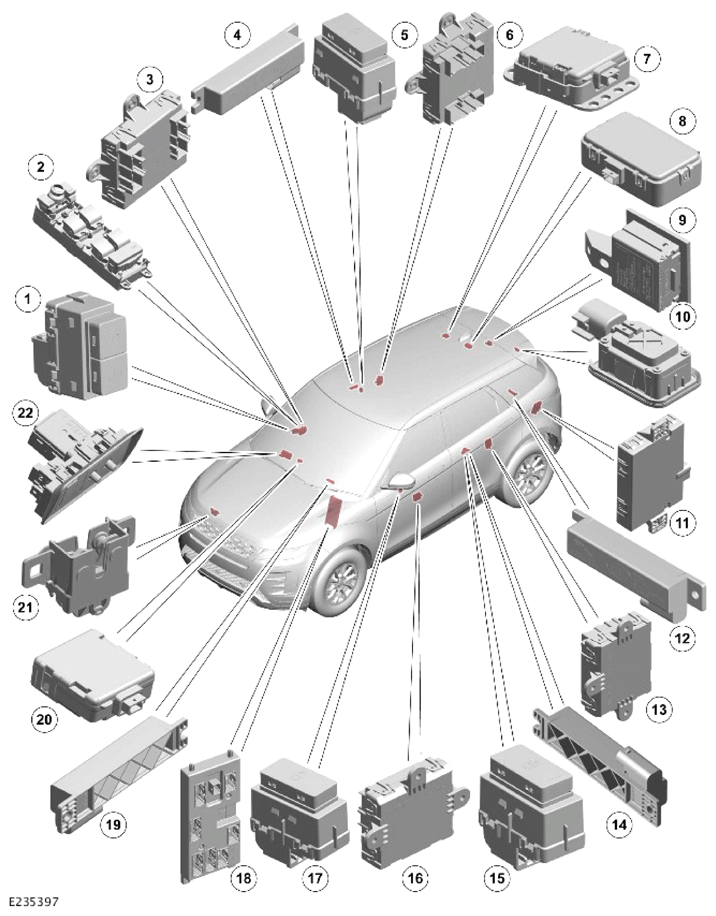

Component Location - 3 Of 4 - Switches, Antennas And Control Modules
NOTE:
Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Central Door Locking (CDL) lock/unlock switch - Driver door |
| 2 | Driver door switchpack - Rear door child locks |
| 3 | Driver Door Module (DDM) |
| 4 | Low Frequency (LF) antenna - Right |
| 5 | CDL lock switch - Rear right door (if equipped) |
| 6 | Rear Door Module (RDM) - Right |
| 7 | Rear passive entry transceiver (if equipped) |
| 8 | Radio Frequency (RF) receiver |
| 9 | Activity key transceiver module (if equipped) |
| 10 | Exterior tailgate release switch |
| 11 | Remote Function Actuator (RFA) |
| 12 | LF antenna - Rear |
| 13 | RDM - Left |
| 14 | LF antenna - Left |
| 15 | CDL lock switch - Rear left door (if equipped) |
| 16 | Passenger Door Module (PDM) |
| 17 | CDL lock switch - Passenger door |
| 18 | Body Control Module/Gateway Module (BCM/GWM) |
| 19 | LF antenna - Front |
| 20 | Front passive entry transceiver (if equipped) |
| 21 | Hood switch |
| 22 | Interior tailgate release switch |
