Component Location - 2 Of 4 - Handles, Locks And Latches

NOTE: Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.

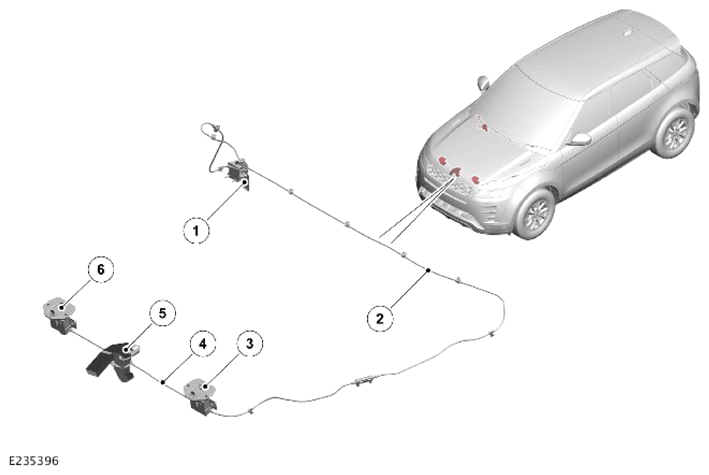

G14458761Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Hood release lever
2 Hood release cable
3 Left hood latch
4 Hood release cable between the hood latches
5 Hood safety latch guide
6 Right hood latch
