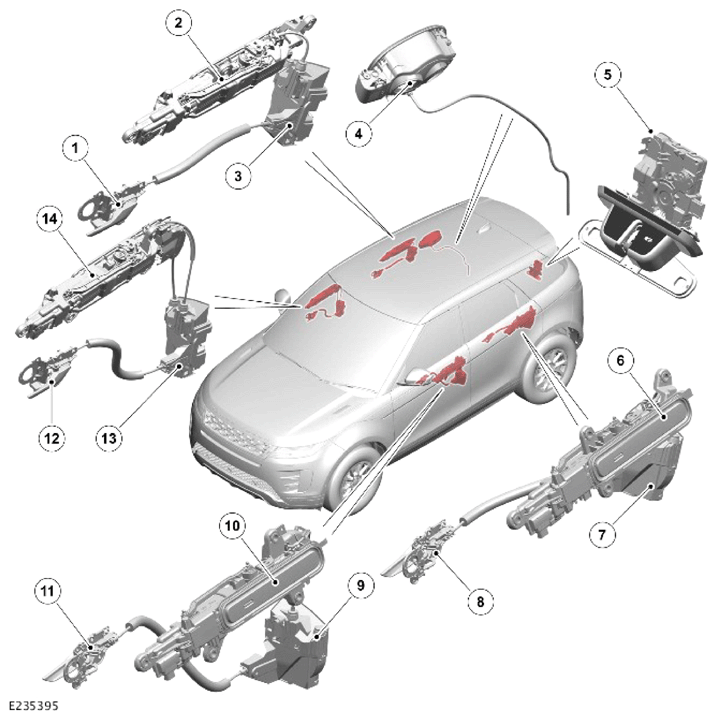

Component Location - 1 Of 4 - Handles, Locks And Latches
NOTE:
Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear right door interior door handle |
| 2 | Rear right door exterior door handle |
| 3 | Rear right door latch |
| 4 | Fuel flap release motor |
| 5 | Tailgate latch |
| 6 | Rear left door exterior door handle |
| 7 | Rear left door latch |
| 8 | Rear left door interior door handle |
| 9 | Passenger door latch |
| 10 | Passenger door exterior door handle |
| 11 | Passenger door interior door handle |
| 12 | Driver door interior door handle |
| 13 | Driver door latch |
| 14 | Driver door exterior door handle |
