Component Location - 2 Of 2 - Passive Entry Transceivers

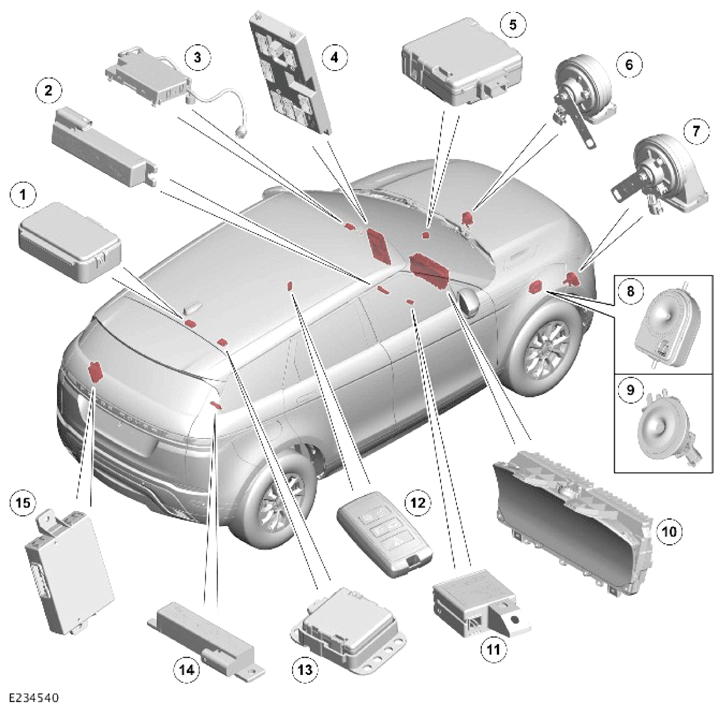

G14456484Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Radio Frequency (RF) receiver
2 Low Frequency (LF) antenna
3 Volumetric sensor
4 Body Control Module/Gateway Module (BCM/GWM)
5 Passive entry transceiver
6 Left horn
7 Right horn
8 Battery Back-Up Sounder (BBUS)
9 Passive sounder
10 Instrument Cluster (IC)
11 Immobilizer Antenna Unit (IAU)
12 Smart key
13 Passive entry transceiver
14 LF antenna
15 Remote Function Actuator (RFA)
