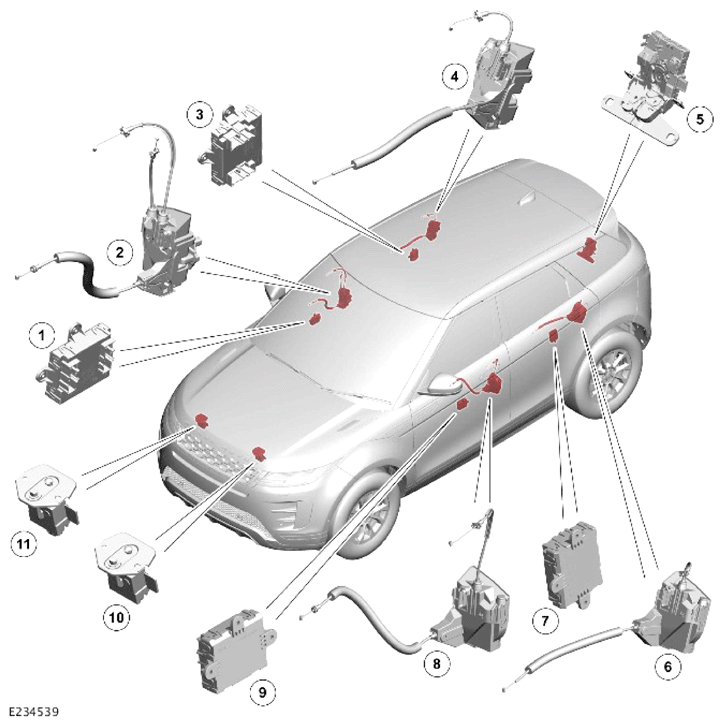

Component Location - 1 0F 2
NOTE:
Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Door Module (DDM) |
| 2 | Driver door latch |
| 3 | Right Rear Door Module (RDM) |
| 4 | Rear right door latch |
| 5 | Tailgate latch |
| 6 | Rear left door latch |
| 7 | Left RDM |
| 8 | Passenger door latch |
| 9 | Passenger Door Module (PDM) |
| 10 | Left hood latch |
| 11 | Right hood latch |
