Glass, Frames And Mechanisms (G2318729)

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

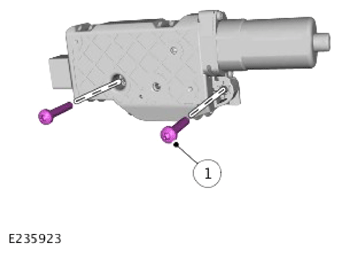

1	Roof opening panel blind motor bolts	3	-	26

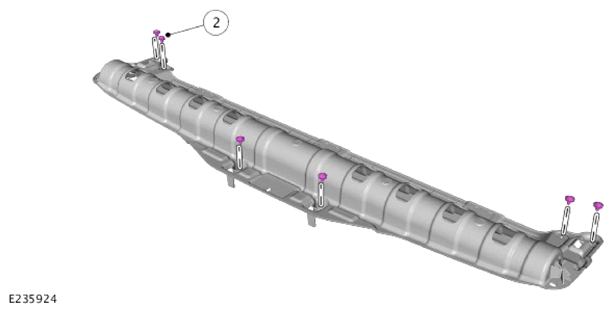

2	Roof panel blind assembly bolts	3	-	26

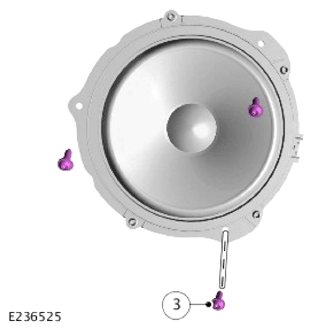

3	Front door bass speaker screws	5	-	44

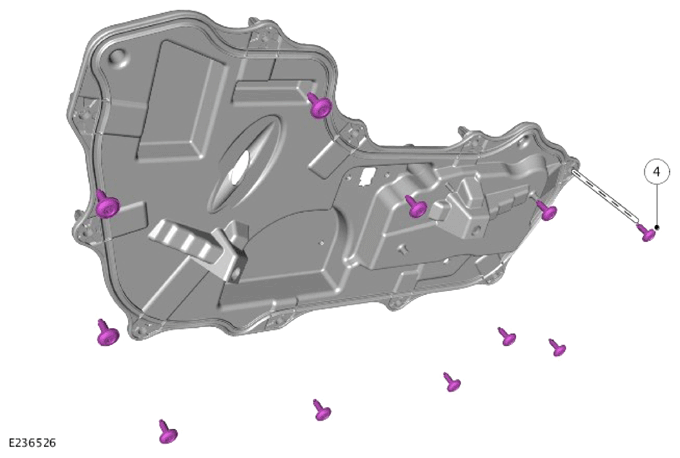

4	Front door weathershield screws	2.2	-	20

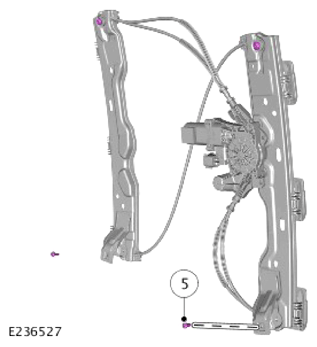

5	Front door window regulator and motor bolts	8	-	70

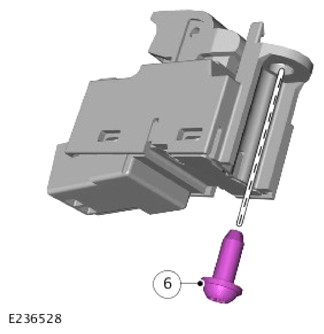

6	Passenger door window control switch bolt	5	-	44

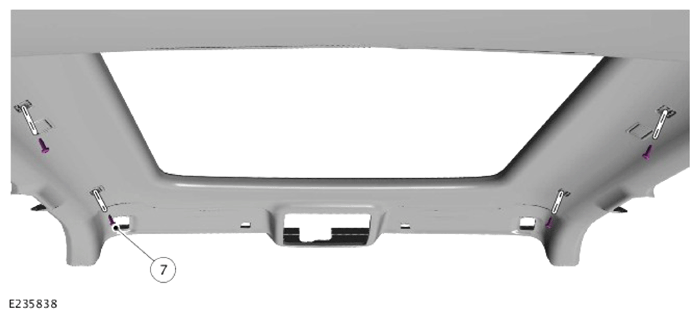

7	Headliner bolts	6	-	53

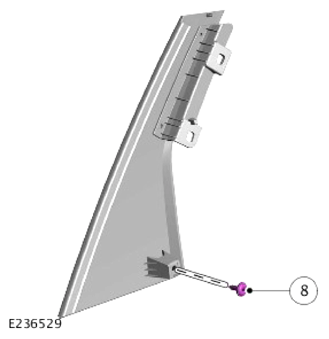

8	Rear door frame finisher bolt	3	-	26

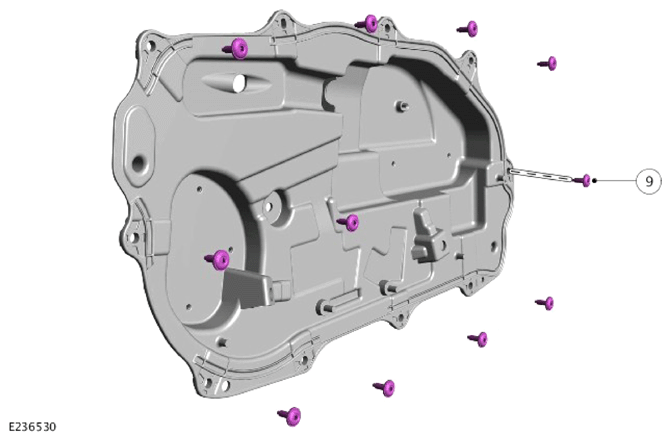

9	Rear door weathershield screws	2.2	-	20

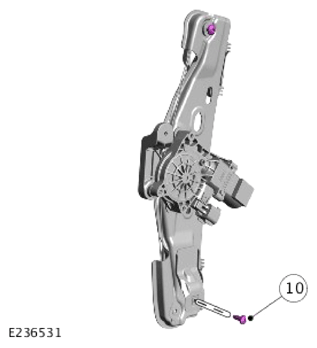

10	Rear door window regulator and motor bolts	8	-	70

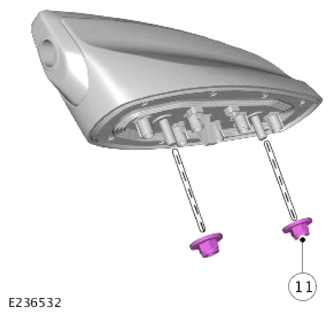

11	Roof pod reinforcement bracket nuts	10	7	-

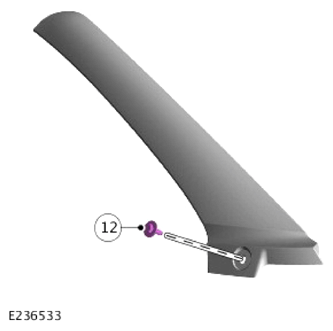

12	Windshield molding screw	1.3	-	12

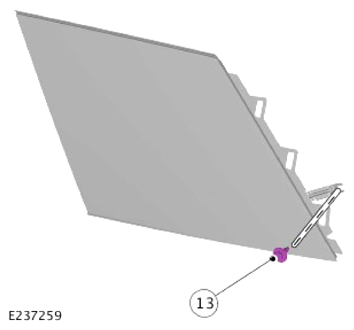

13	Rear quarter window bolt	10	7	-
