Steering Column MULTIFUNCTION Switch (G2319835): Installation
-
CAUTION: Take extra care when handling the component. Failure to follow this instruction might result in damage to the component.

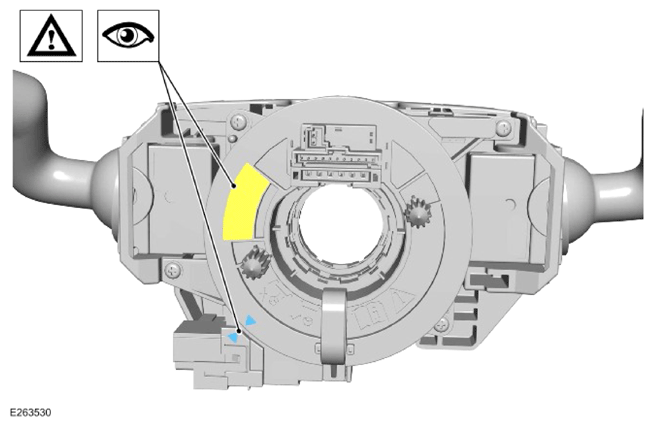

- Inspect the component for the correct zero position alignment:
- Align the two triangle alignment marks together, highlighted with blue.
- If the component is aligned correctly, a yellow/white roller is visible in the inspection window, highlighted with yellow.
- If a black/blue roller is visible in the inspection window, the component is rotated 360° away from the correct zero position.
- Make sure that the correct alignment is maintained through the installation of the component.
-
- Install the multifunction switch and clockspring assembly.
- Install and tighten the 2 bolts.
Torque : 2.5 Nm
-
- Connect the 3 electrical connectors.
- Attach the 2 wiring harness clips.
- Install the steering column upper cover.
-
- Connect the 2 electrical connectors.
- Install the steering column lower cover.
- Install and tighten the 2 screws.
- Install the steering wheel.
Refer to: STEERING WHEEL .
- Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
- Reposition the steering column in the original position noted on removal.
- If a new component has been installed, configure using Jaguar Land Rover (JLR) approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
