Instrument Panel Lower Trim Panel (G2309296): Removal

CAUTION: Use a suitable trim tool.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

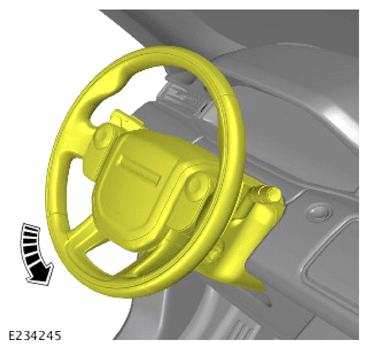

Reposition the steering column to its lowest position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the steering column upper trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

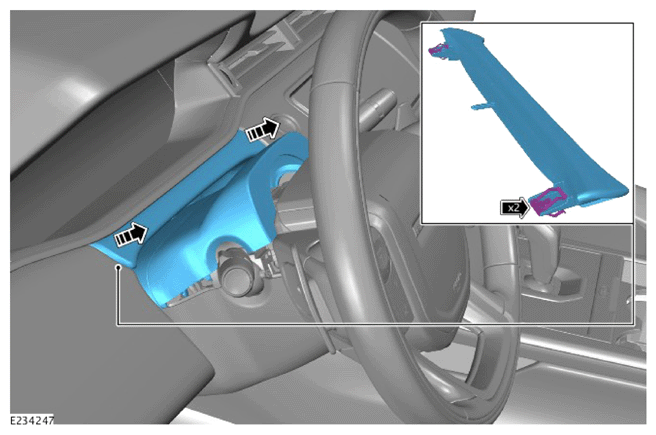

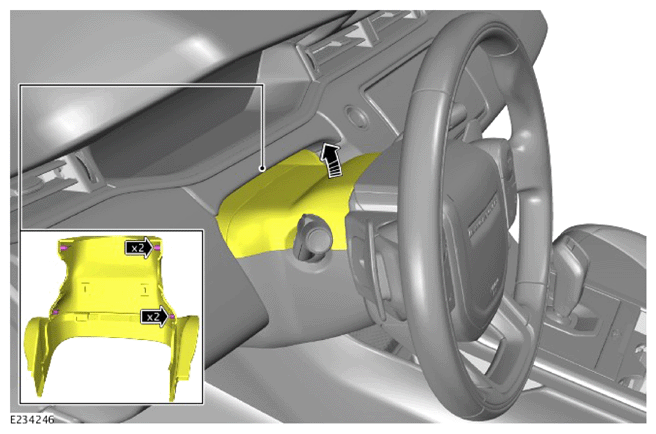

Remove the steering column upper trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

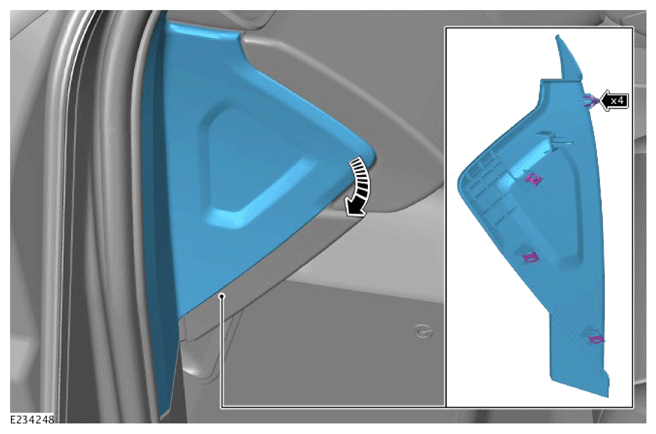

Remove the instrument panel outer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

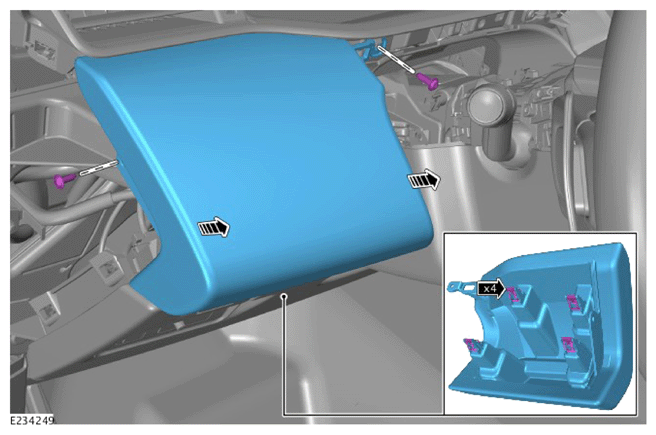

- Remove the 2 screws.
- Remove the instrument panel upper trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

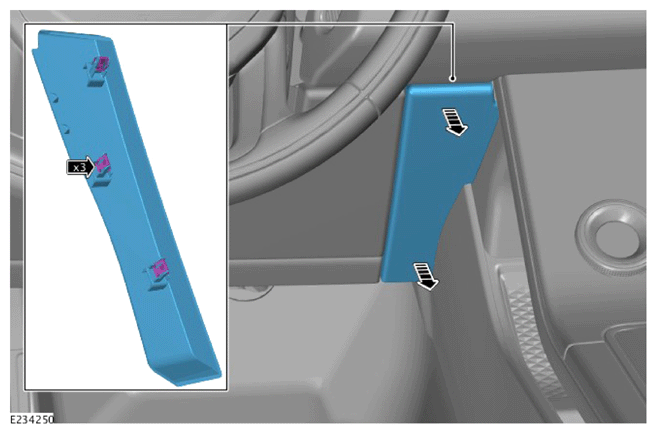

Remove the left side instrument panel lower trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

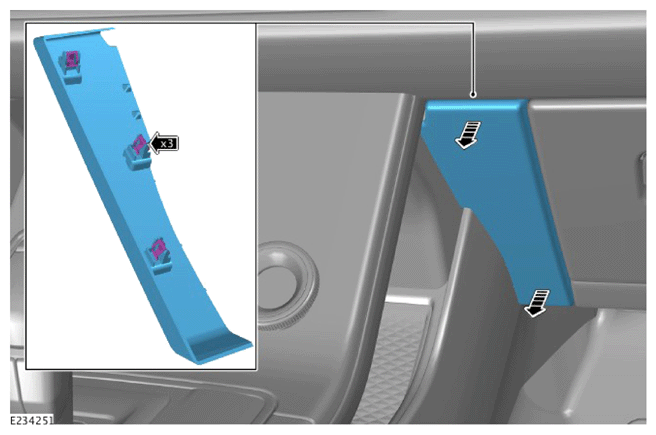

Remove the right side instrument panel lower trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

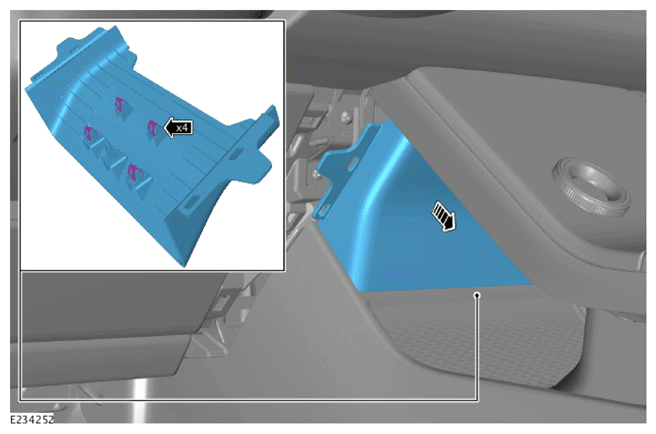

Remove the front compartment center cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws.
- Remove the instrument panel lower trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

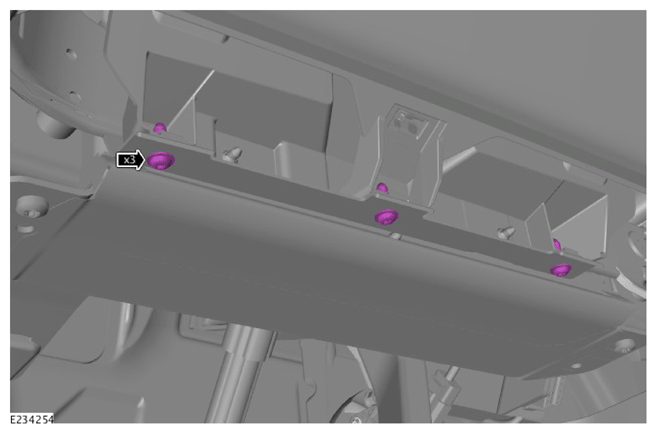

Remove the 3 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

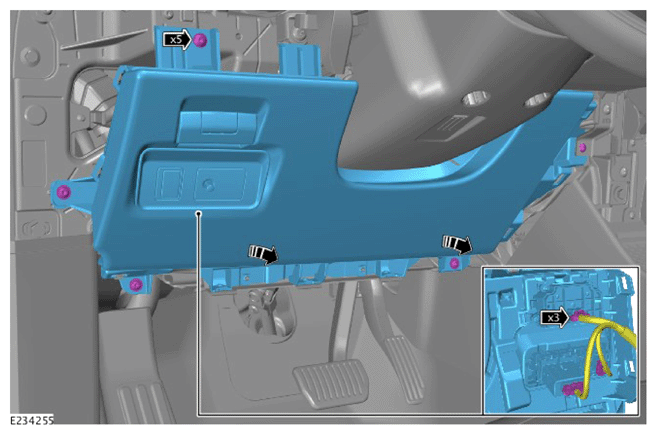

- Remove the 5 screws.
- Release the instrument panel lower trim panel.
- Disconnect the 3 electrical connectors.
- Remove the instrument panel lower trim panel.
