Instrument Panel Cross-Car Beam (G2300535): Removal

WARNING:

Take extra care when handling supplemental restraint system (SRS) components.
To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
Do not probe supplemental restraint system (SRS) electrical connectors.

CAUTION: Do not use excessive force to remove the component. Make sure that all fixings are fully released.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the windshield wiper motor.
Refer to: WINDSHIELD WIPER MOTOR .
Remove the instrument panel.
Refer to: INSTRUMENT PANEL .
Remove the front right treadplate.
Refer to: FRONT RIGHT TREADPLATE .
Remove the front left treadplate.
Refer to: FRONT LEFT TREADPLATE .
Remove the front right floor carpet.
Refer to: FRONT FLOOR CARPET .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

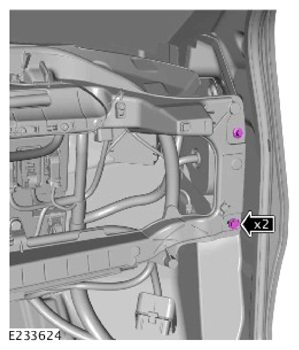

Remove the instrument panel cross-car beam 2 outside bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

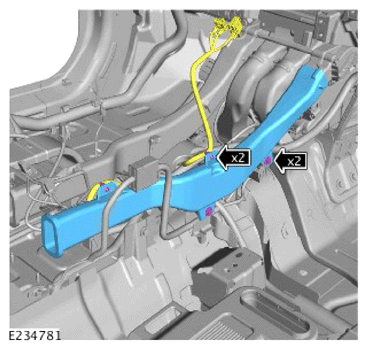

- Release the wiring harness from the 2 clips.
- Remove the 2 bolts.
- Remove the right side air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the wiring harness from the clip.
- Remove the 2 bolts.
- Remove the left side air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

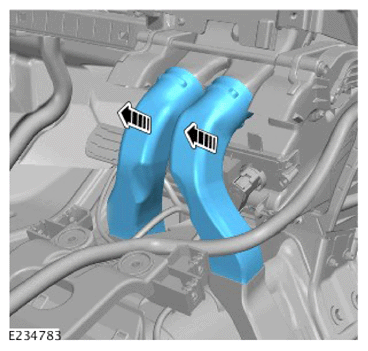

Remove the 2 front air ducts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

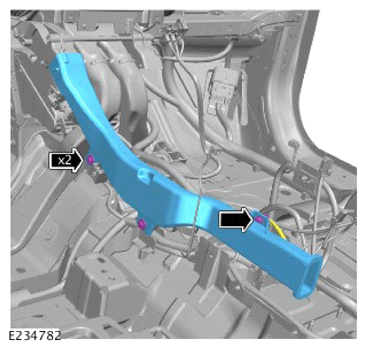

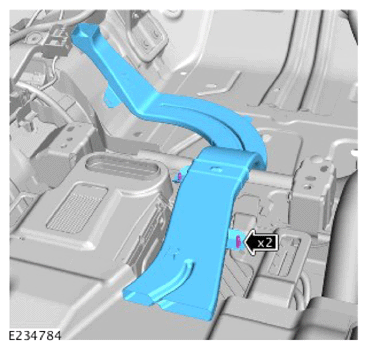

- Release the rear footwell air duct from the 2 studs.
- Remove the rear footwell air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

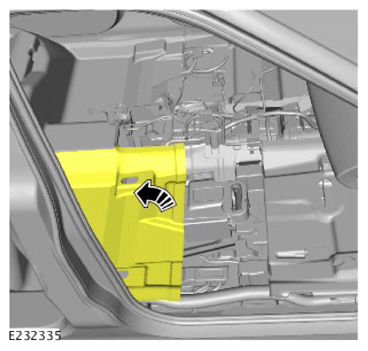

Reposition the rear floor carpet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

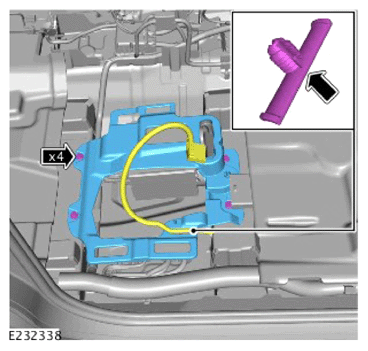

- Release the wiring harness clip.
- Remove the 4 fasteners.
- Remove the Infotainment Master Controller (IMC) air duct bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 5 electrical connectors from the IMC.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

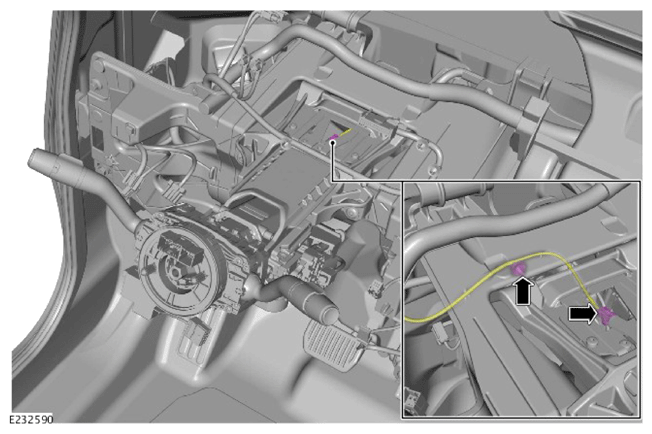

- Disconnect the 2 electrical connectors.
- Release the wiring harness from the 3 clips.
- Remove the ground connection bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

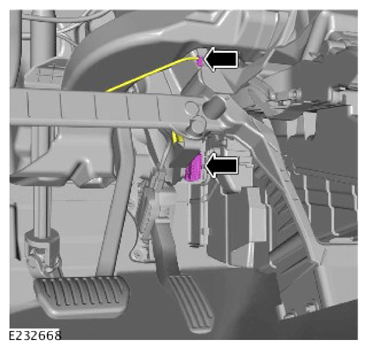

- Disconnect the electrical connector.
- Release the wiring harness from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

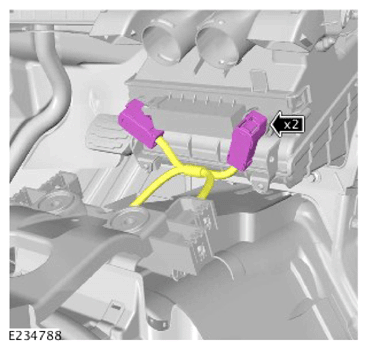

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the diagnostic connector.
- Disconnect the electrical connector from the left side footwell air duct temperature sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

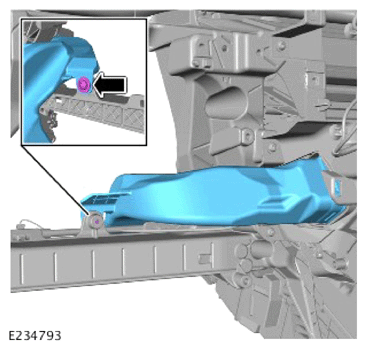

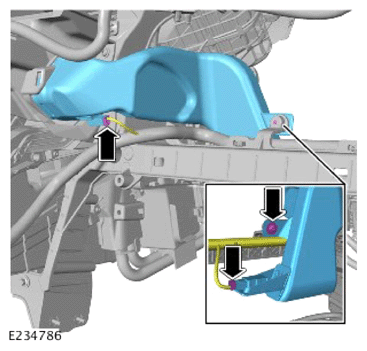

- Remove the bolt.
- Remove the left side footwell air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the bolt.
- Remove the right side footwell air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 5 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

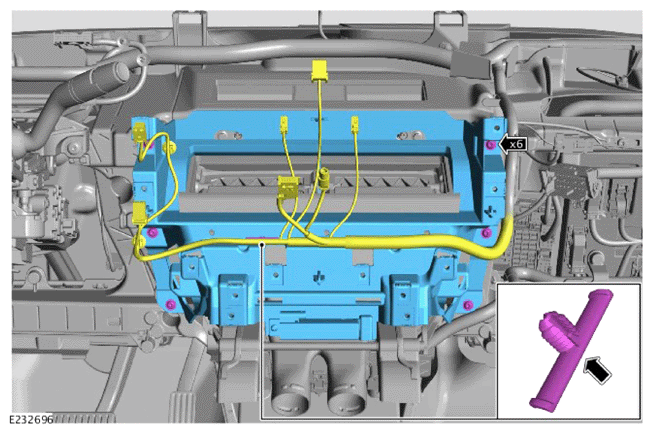

- Release the wiring harness clip.
- Remove the 6 bolts.
- Remove the inner bracket.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the steering column.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the steering column flexible coupling bolt.
- Release the steering column flexible coupling.
- Remove the 4 bolts from the steering column.
- Remove the steering column assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the instrument panel cross-car beam center bracket.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

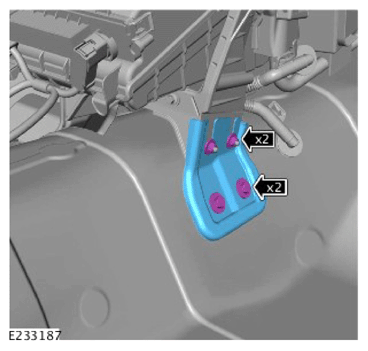

- Remove the 2 nuts.
- Remove the 2 bolts.
- Remove the instrument panel cross-car beam lower bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 bolts.
CAUTION: Make sure the instrument panel cross-car beam is supported.

NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the instrument panel cross-car beam.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

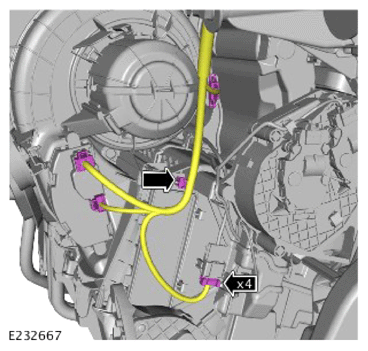

- Disconnect the 4 electrical connectors.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

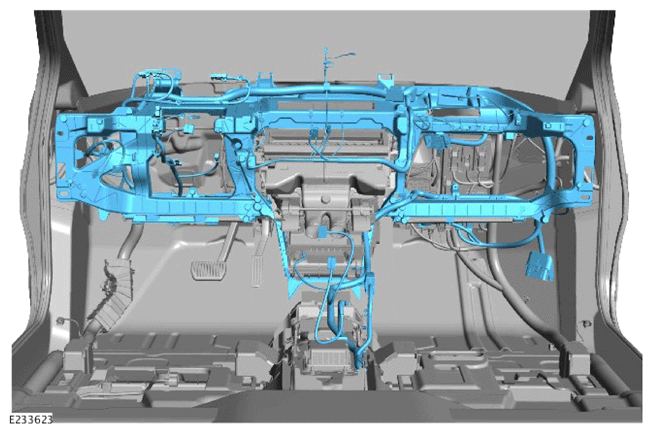

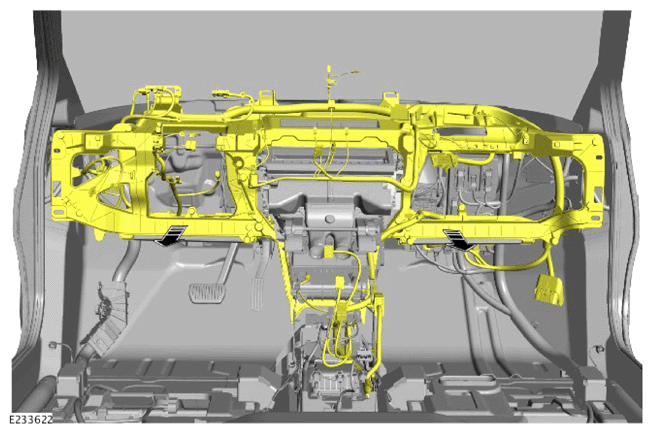

With assistance, remove the instrument panel cross-car beam and wiring harness.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

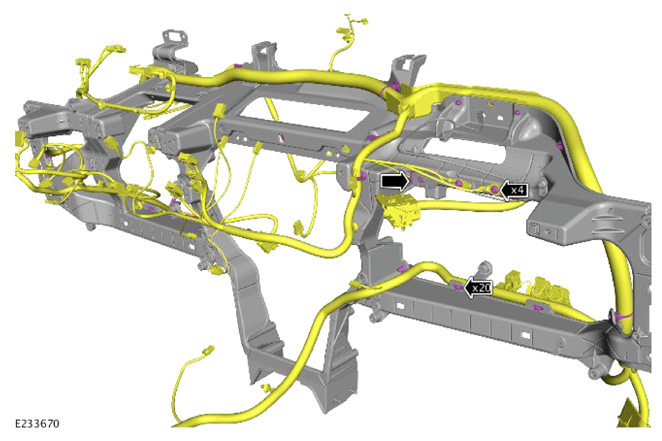

- Disconnect the electrical connector.
- Remove the 4 ground connection bolts.
- Release the 20 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

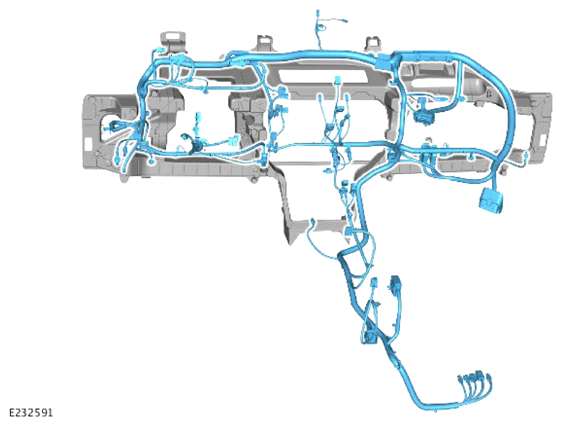

Remove the instrument panel wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

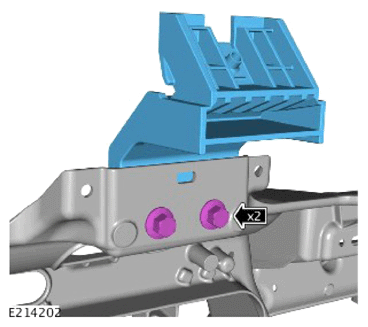

- Remove the 2 bolts.
- Remove the instrument panel bracket.
