Instrument Panel (G2300530): Installation

NOTE: Make sure that all the clips are correctly installed.
  1. NOTE: Only do the following step(s) if the component was previously removed.
    • Install the Head Up Display (HUD).
    • Install and tighten the 4 screws.

      Torque  : 4.8 Nm

    • Install the passenger airbag.
    • Install and tighten the 8 nuts.

      Torque  : 6.2 Nm

    • Install the face vent air duct.
    • Install and tighten the 8 screws.

      Torque  : 1.5 Nm

    • Install the demist vent air duct.
    • Install and tighten the 8 screws.

      Torque  : 1.5 Nm

    • Install the air ionizer.
    • Connect the air ionizer hose.
    • Install and tighten the 4 screws.

      Torque  : 1.5 Nm

  6. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

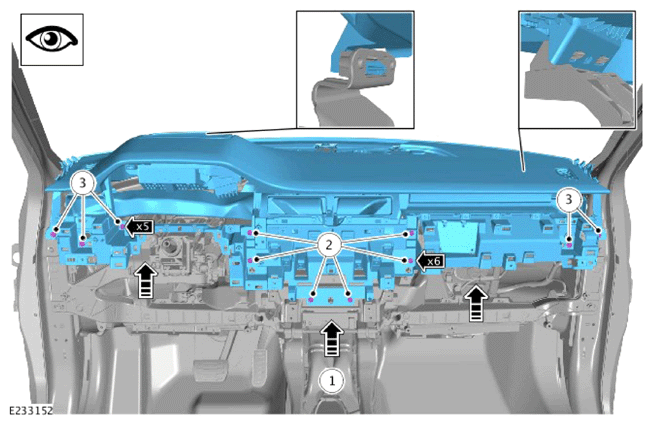

    G14458719Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. With assistance, Install the instrument panel.
    2. Install and tighten the 6 center bolts.

      Torque  : 4.8 Nm

    3. Install and tighten the 5 side bolts.

      Torque  : 8 Nm

  7. Install and tighten the instrument panel mounting bolt behind the glovebox.

    Torque  : 4.8 Nm

    • Install and tighten the 2 M6 bolts under the instrument panel center speaker grille.

      Torque  : 4.8 Nm

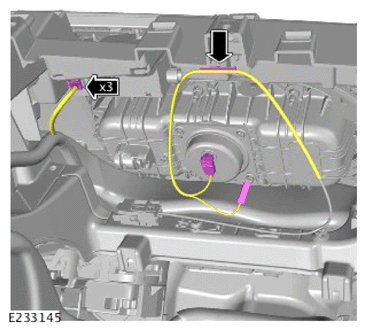

  9. G14458712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the wiring harness to the clip.
    • Connect the 3 electrical connectors.
  10. Connect the 2 electrical connectors to the HUD.
    • Move the wiring harness to the original position.
    • Connect the 2 electrical connectors to the duct air temperature sensors.
    • Install the wiring harness to the 2 clips.

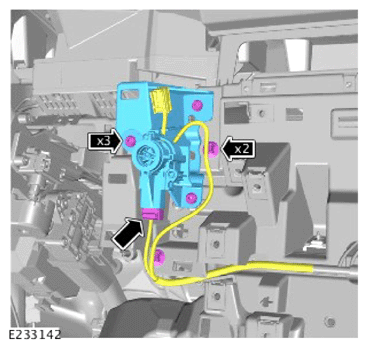

  12. G14458709Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the in-vehicle temperature sensor.
    • Install and tighten the 3 screws.

      Torque  : 1.5 Nm

    • Connect the electrical connector to the in-vehicle temperature sensor.
    • Install the wiring harness to the 2 clips.

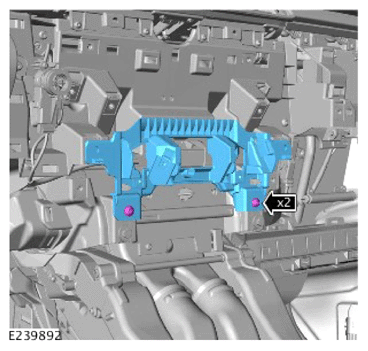

  13. G14458708Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the instrument panel center carrier.
    • Install and tighten the 2 screws.

      Torque  : 4.8 Nm

    • Install the instrument panel speaker.
    • Install and tighten the 3 screws.

      Torque  : 1.5 Nm

    • Connect the 2 electrical connectors.
    • Install the wiring harness to the clip.
    • Connect the electrical connector to the sunload sensor.
    • Install the demist vent trim panel.
    • Install and tighten the 2 screws.

      Torque  : 1.5 Nm

    • Install the instrument panel center speaker grille.
    • Install the 6 clips.
  17. NOTE: Repeat this step for the other side.

    Install the A-pillar trim panel.

    Refer to: A-PILLAR TRIM PANEL .

  18. Install the instrument panel lower trim panel.

    Refer to: INSTRUMENT PANEL LOWER TRIM PANEL  .

  19. Install the passenger side vent.

    Refer to: PASSENGER SIDE VENT .

  20. Install the glovebox.

    Refer to: GLOVEBOX  .

  21. Install the instrument cluster.

    Refer to: INSTRUMENT CLUSTER .

  22. Install the clockspring.

    Refer to: CLOCKSPRING .

  23. Install the floor console.

    Refer to: FLOOR CONSOLE  .

  24. Connect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT .
