Low Pressure Fuel Pump Assembly (G2767507): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
- Do not carry or operate mobile phones when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
- Do not smoke or carry lighted tobacco or an open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Before working on the fuel system make sure to study the fuel system health and safety service information.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
- Release the pressure in the fuel system.
Refer to: FUEL SYSTEM PRESSURE RELEASE .
- Drain the fuel tank.
Refer to: FUEL TANK DRAINING .

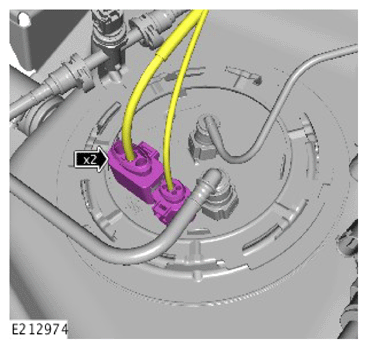

Disconnect the 2 electrical connectors.
-
WARNING: Be prepared to collect escaping fuel.

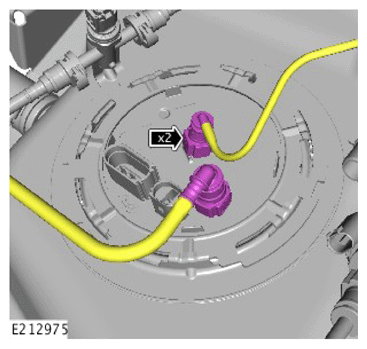

Remove the 2 fuel pipes.
-
WARNING: Be prepared to collect escaping fuel.

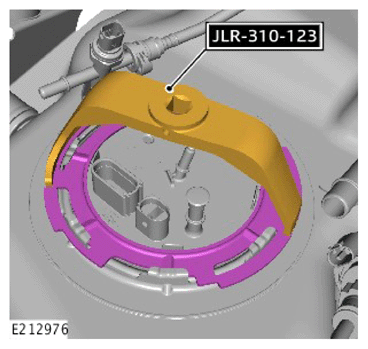

Using the special tool release the retaining ring.
Special Tool(s): 310-123
-
WARNING: Be prepared to collect escaping fuel.
Disconnect the lower electrical connector.
-
WARNING: The spilling of fuel is unavoidable during this operation. Make sure that all necessary precautions are taken to prevent fire and explosion.
- Remove the in tank pipe.
Remove and discard the O-ring seal.
