Fuel Tank Filler Pipe - INGENIUM I4 2.0L Petrol - PHEV (G2173215): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.

CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before working on the fuel system make sure to study the fuel system health and safety service information.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
Depressurize the fuel system.
Refer to: FUEL SYSTEM PRESSURE RELEASE .
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Drain the fuel system.
Refer to: FUEL TANK DRAINING .
Remove the rear right wheel and tire assembly.
Refer to: WHEEL AND TIRE .
Remove the rear right fender splash shield.
Refer to: REAR WHEEL ARCH LINER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

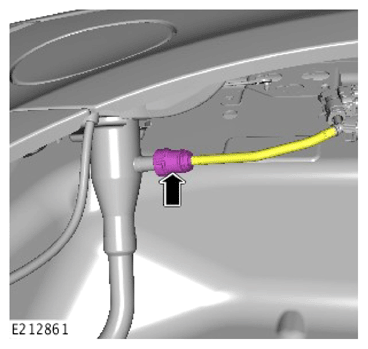

Release the fuel pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

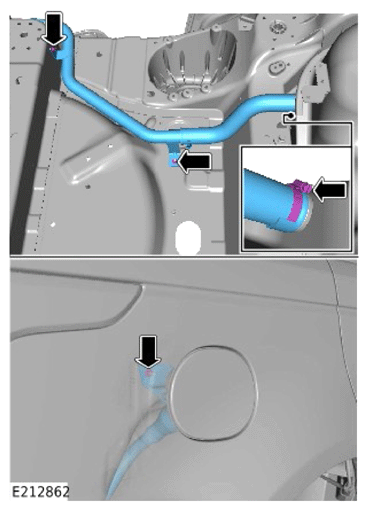

- Remove the 2 fuel tank filler pipe retaining nuts and the retaining bolt.
- Release the fuel filler neck hose clamp.
- Remove the fuel filler neck.
