Fuel Level Sensor (G1961418): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow this instruction may result in personal injury.
- This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
- The vehicle must be supported using suitable axle stands.
NOTE:
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
- Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
- Remove the fuel pump.
Refer to: LOW PRESSURE FUEL PUMP ASSEMBLY .

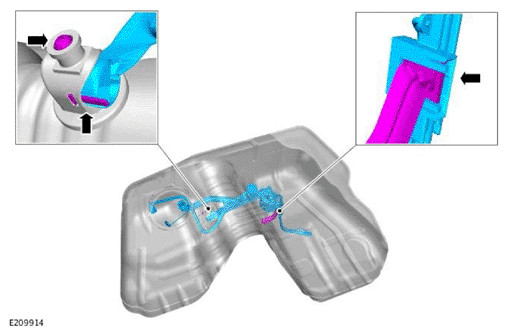

- Remove the screw.
- Remove the fuel lever sensor with bracket and harness.

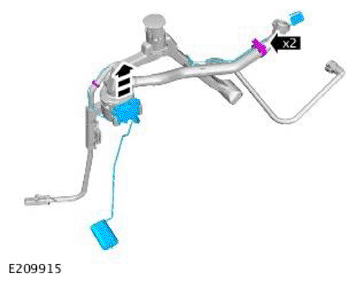

- Remove the harness clips.
- Remove the fuel level sensor from the bracket.
