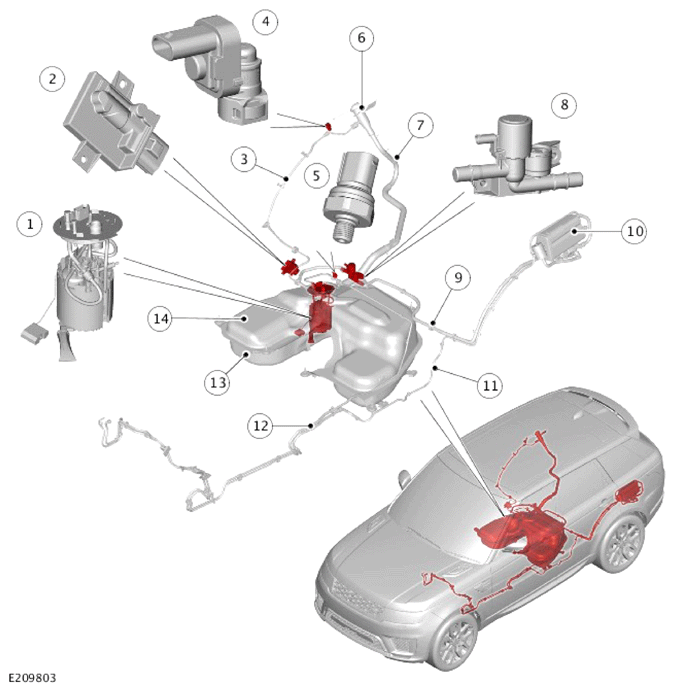

Component Location - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pump module |
| 2 | Fuel Pump Driver Module (FPDM) |
| 3 | Fuel tank breather |
| 4 | Fuel tank pressure sensor |
| 5 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 6 | Fuel filler cap |
| 7 | Fuel filler pipe |
| 8 | Fuel tank isolation valve |
| 9 | Fuel tank ventilation pipe to the Evaporative Emission (EVAP) canister |
| 10 | EVAP canister |
| 11 | EVAP canister pipe to the purge valve |
| 12 | Fuel delivery line |
| 13 | Fuel tank shield |
| 14 | Fuel tank assembly |
