Low Fuel Pressure Sensor
WARNING: This page is about a different variant/trim than selected.

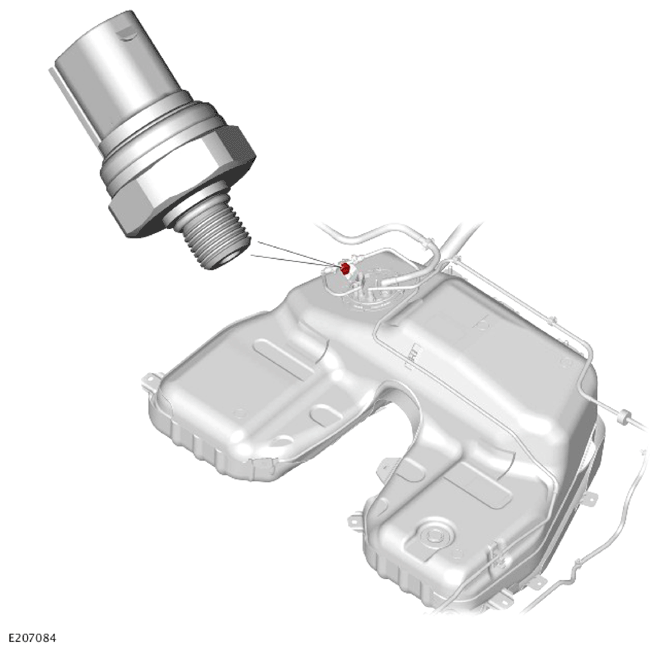

The low fuel pressure sensor is located above the fuel pump module flange. The low fuel pressure sensor is screwed into an integral boss on the fuel delivery line. The low fuel pressure sensor is located between the fuel pump module and the Low Pressure (LP) fuel delivery line to the High Pressure (HP) fuel pump. The low fuel pressure sensor measures the fuel pressure being supplied from the fuel tank mounted fuel pump module to the HP fuel pump. For additional information, refer to: ELECTRONIC ENGINE CONTROLS .
